Tri Clamp Connection Hygienic Sanitary Check Valve SS316L Non Return
Price:
Contact us for the best quote
MOQ:
sample order acceptable
Delivery Time:
1 - 2 weeks according to order quantity
Brand:
WLM
Product Description
Food Grade Stainless Steel Hygienic Tri Clamp Connection Sanitary Non-Return Check Valve
Quality Control:
- PMI test to verify material grade
- Dimension control during fabricating and finished
- All valves should 100% pass press test
- Firm and strong packing for air and sea shipment
- Third party inspection available
Specifications:
| Product Name: | Hygienic Tri Clamped Non-return Check Valve |
| Material: | 304 or 316L stainless steel, forged or casting |
| Standard: | 3A, ASME BPE, SMS 3017, DIN 11864, DIN 11853, BS 4825, DIN32676, ISO 2852 |
| Size: | 1/2" - 4" or DN15-DN100 |
| Thickness: | 1.2mm - 2mm |
| Connection Way: | Tri-Clamp |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finish: | Ra≤0.8μm |
| Working Temperature: | -10°C to +120°C |
| Opening Pressure: | 0.3 Bar (DN25), 0.2 Bar (DN32/40), 0.1Bar (DN-50/100) |
| Packing: | Bubble bag + carton + plywood case |
Main Parts:
- Valve cover and valve seat: Hygienic 304 or 316L stainless steel
- Sealing Gasket: VQM / EPDM / PTFE
- Valve disc and spring
- Petal
- Tri Clamp
Working Principle:
- 1. The flow pressure of both sides of pipe system equals to each other, the valve is closed
- 2. When flow pressure at bottom side increases, the valve disc is pushes upwards
- 3. Valve is opened and medium flows through the valve accordingly
- 4. When flow pressure of both sides return to balance, the spring force pushes the disc back
- 5. Valve is closed, to stop the medium from flowing back

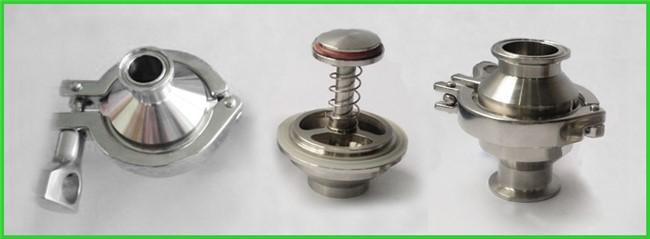

Check Valve Photos:
