Heavy Duty Hesco Defensive Barriers Bunker , Sand Filled Barriers Long Service Life
Military gabion blast wall hesco bastion bunker with sand filled

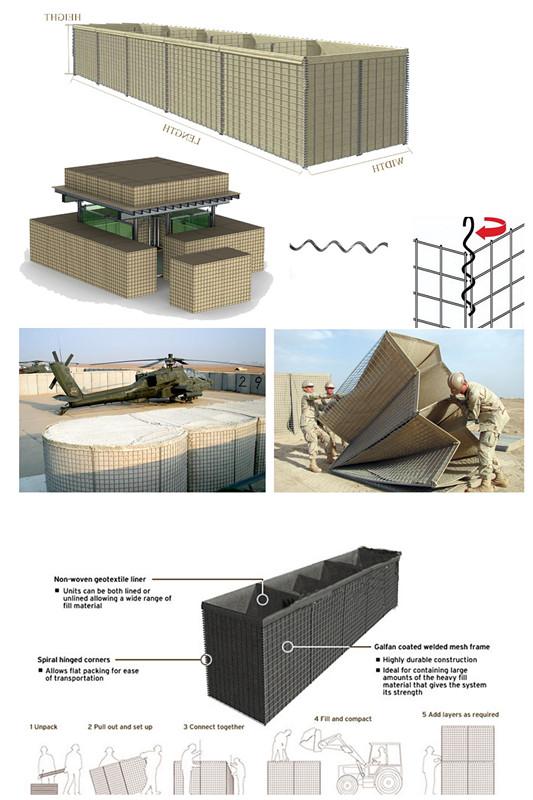

Hesco barrier also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc. It is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.
Specification:
1. Material: Low carbon steel wire, Stainless steel wire
2. Wire Diameter: 3mm, 4mm, 5mm, 6mm etc.
3. Spring Wire: 3mm, 4mm, 5mm, 6mm etc.
4. Mesh Hole: 50mm x 50mm, 75mm x 75mm, 76.2mm x 76.2mm, 100mm x 100mm etc.
5. Geotextile: Heavy duty non-woven polypropylene
6. Finish:Hot-dipped galvanized, Electro galvanized, Galfan etc
| Hesco Barriers | |||
| PRODUCT | HEIGHT | WIDTH | LENGTH |
| MIL1 | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) |
| MIL2 | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) |
| MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) |
| MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) |
| MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) |
| MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) |
| MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) |
| MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) |
| MIL9 | 39''(1.00M) | 30''(0.76M) | 30''(9.14M) |
| MIL10 | 87''(2.21M) | 60''(1.52M) | 100'(32.50M) |
| MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) |
| MIL12 | 84''(2.13M) | 42''(1.06M) | 108'(33M) |
Application:
- Defensive firing positions
- Highway checkpoints
- Border crossing checkpoints
- Protection existing structures
- High way traffic management
- Flood control
- Perimeter security and defence walls
- Equipment revetments
- explosive and contraband search areas
- Ammunition compounds
- Personnel and material bunkers
- Observation points
- Water courses
- Emergency flood deployment
- Erosion control
- Retaining walls
Features:
- Easy to handle and install
- High tensile and anti-impact capability
- Long life, regular use
- Can be filled with sand, earth, cement, stone.
