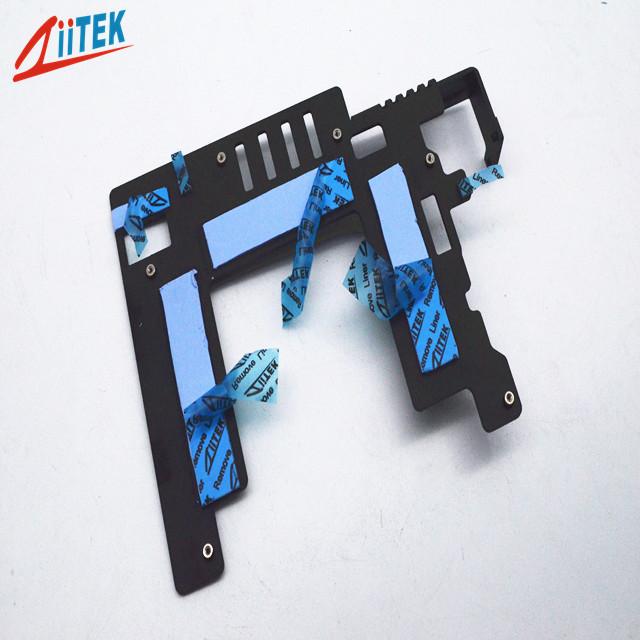

45 Shore 00 Silicone Thermal Pad 3.2W/M-K 3.0g/Cc For Mass Storage Devices
45 Shore 00 silicone thermal pad 3.2W/M-K,Specific Gravity :3.0g/cc for mass storage devices
Company Profile
With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
<Outstanding thermal performance
<High tack surface reduces contact resistance
<RoHS compliant
<Mass storage devices
<Automotive electronics
<Set top boxes
<Audio and video components
<Semiconductor automated test equipment (ATE)
<CPU
|
Typical Properties of TIF 5160S
|
|||
|
Product Name
|
TIF5160S Series
|
||
|
Colour
|
Blue | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific Gravity
|
3.0g/cc
|
||
|
Thickness |
4.0mmT
|
||
|
Hardness
|
45 Shore 00
|
||
|
Tensile Strength
|
40 psi
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
3.2 W/mK
|
||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
FAQ:
Q: Do you accept custom orders ?
A: Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
