Blue RoHS Compliant Thermal Conductive Gap Pad 3.2W/M-K For Power Supply
UL recognized and RoHS compliant thermal conductive gap pad 3.2W/M-K For power supply
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
<Outstanding thermal performance
<High tack surface reduces contact resistance
<Soft and compressible for low stress applications
<power supply
<Heat pipe thermal solutions
<Memory Modules
<CD-Rom, DVD-Rom cooling
<LED Power Supply
<LED Controller
<LED Ceilinglamp
|
Typical Properties of TIF 5200S
|
|||
|
Product Name
|
TIF5200S Series
|
||
|
Colour
|
Blue | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Specific Gravity
|
3.0g/cc
|
||
|
Thickness |
5.0mmT
|
||
|
Hardness
|
45 Shore 00
|
||
|
Tensile Strength
|
40 psi
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
3.2 W/mK
|
||
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

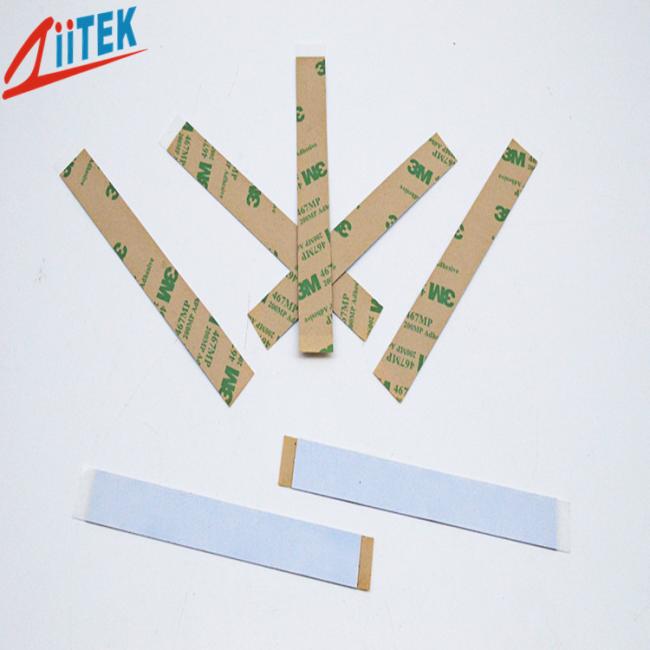

Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
