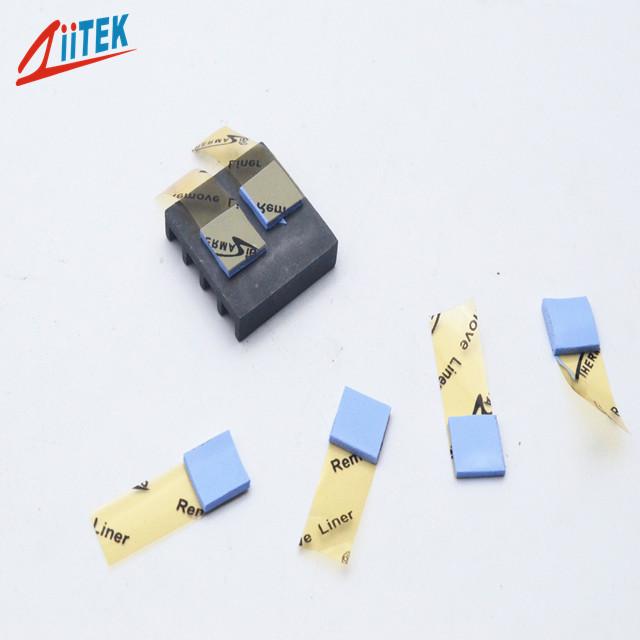

Blue Thermal Conductive Gap Filler 1.2W/M-K For Heat Pipe Thermal Solutions
China company supplied blue thermal conductive gap filler 1.2W/M-K For Heat pipe thermal solutions
Company Profile
With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
TIF100-12-05ES-Series-Datasheet.pdf
<Moldability for complex parts
<High tack surface reduces contact resistance
<Electrically isolating
<Heat pipe thermal solutions
<Memory Modules
<Mass storage devices
<LED Controller
<LED Ceilinglamp
<Monitoring the Power Box
<AD-DC Power Adapters
|
Typical Properties of TIF160-12-05ES
|
|||
|
Product Name
|
TIF160-12-05ES Series
|
||
|
Colour
|
Blue | ||
|
Construction & Compostion
|
Ceramic filled silicone rubber
|
||
|
Density |
2.0 g/cm3
|
||
|
Thickness |
1.5mmT
|
||
|
Hardness
|
12±5 Shore 00
|
||
|
Tensile Strength
|
40 psi
|
||
|
Continuos Use Temp
|
-40to 160℃
|
||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
|
Thermal conductivity
|
1.2 W/mK
|
||
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness
