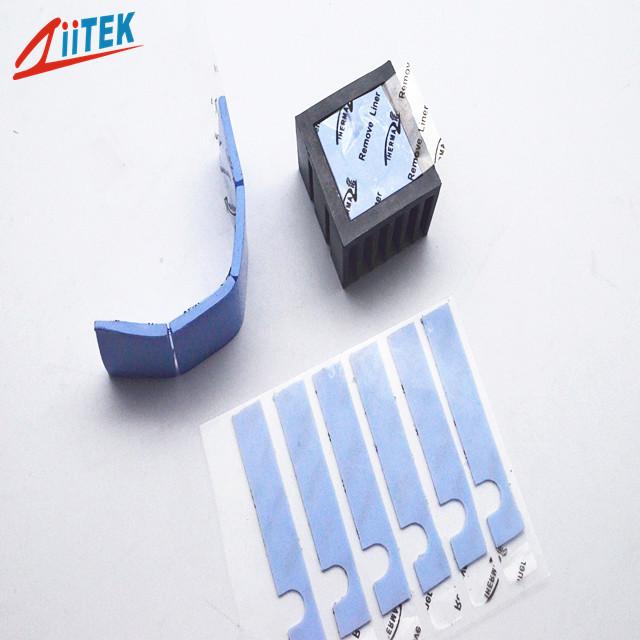

3.0G/Cm³ Rohs Compliant Thermal Pad Silicone High Durability For Routers
3.0g/cm³ Rohs Compliant Thermal Pad Silicone High Durability For Routers
Company Profile
With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
>Broad range of hardnesses available
>Outstanding thermal performance
>High tack surface reduces contact resistance
>RoHS compliant
>UL recognized
>Micro heat pipe thermal solutions
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>CPU
>Display card
>Mainboard/mother board
>Notebook
>Power supply
>Heat pipe thermal solutions
>Memory Modules
>Mass storage devices
| Typical Properties of TIF®100-30-05US Series | |||
| Property | Value | Test method | |
| Color | Blue | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 50 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 | |
| 3.0 W/m-K | ISO22007 | ||
Product Specification
Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
