Custom 3.0W Ultra-Soft 0.5mm thickness High Thermal Conductive Silicon Pad For Graphics Card
Custom 3.0W Ultra-Soft 0.5mm thickness High Thermal Conductive Silicon Pad For Graphics Card
Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.

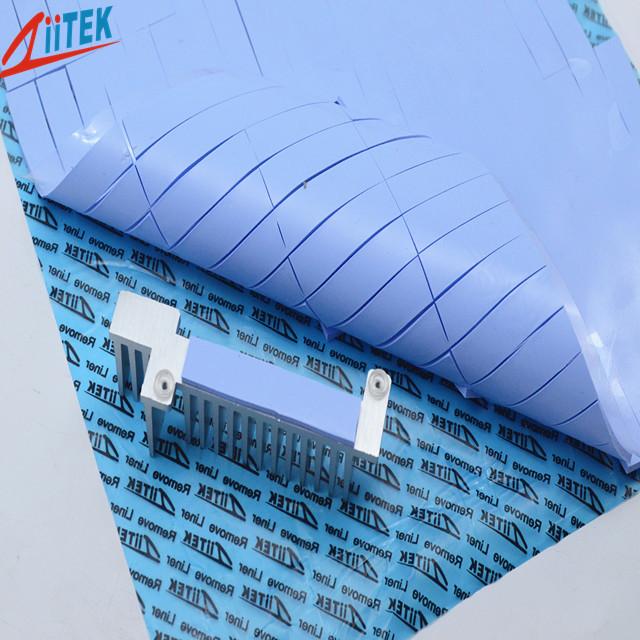

The TIF®100-30-05E Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
● Available in varies thicknesses 3.0W/mK
● Broad range of hardnesses available
● Moldability for complex parts
● Outstanding thermal performance
● Easy release construction
● Electrically isolating
● High durability
Applications
● CPU
● Display card
● Mainboard/mother board
● Notebook
● Power supply
● Heat pipe thermal solutions
● Memory Modules
● Mass storage devices
● Automotive electronics
● Cooling components to the chassis of frame
● High speed mass storage drives
● Heat Sinking Housing at LED-lit BLU in LCD
● LED TV and LED-lit lamps
● RDRAM memory modules
| Typical Properties of TIF®100-30-05E Series | |||
| Property | Value | Test method | |
| Color | Blue | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 3.0 | ASTM D5470 | |
| 3.0 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1(Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
