0.25-5.0mmT 3.2W/MK Thermal Conductive Pad White For Wireless Router
0.25-5.0mmT 3.2W/MK Thermal Conductive Pad White For Wireless Router
Company Profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Products description

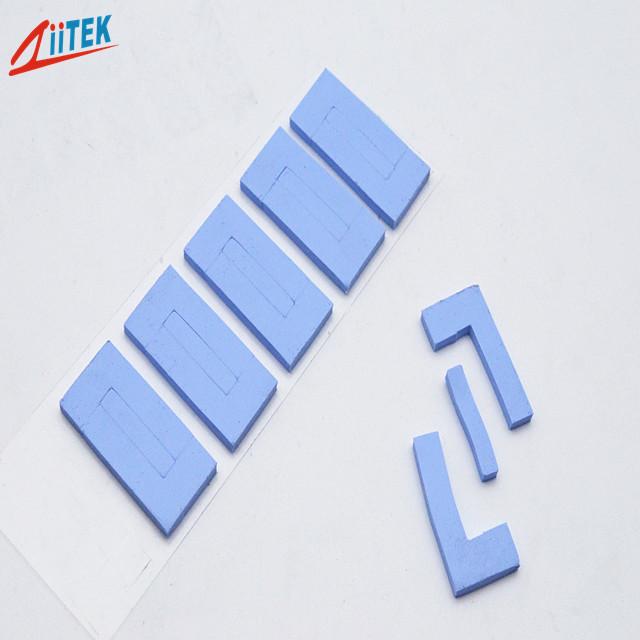

The TIF®100-32-05E Series is a well-balanced,general-purpose thermal pad. It offers good thermal conductivity_and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs,achieving the best balance between cost and performance.
Features
> Good thermal conductive: 3.2W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance
> Electrically isolating
Applications
> LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> Memory Modules
> routers
> Telecommunication hardware
> mainboard/mother board
> IT infrastructure
> GPS navigation and other portable devices
| Typical Properties of TIF®100-32-05E Series | |||
| Property | Value | Test method | |
| Color | Blue | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.2 W/m-K | ASTM D5470 | |
| 3.2W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
TheTIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
