China Stress Birefringence Measurement System Detection Equipment In Semiconductor Industry for sale

Stress Birefringence Measurement System Detection Equipment In Semiconductor Industry

Price Negotiable
Price: Case by case
MOQ: 1set
Delivery Time: Case by case
Brand: ZEIT
Product Description

Stress Birefringence Detection Equipment in Semiconductor Industry





Applications

    UV-ultraviolet      Semiconductor
     Light source raw material manufacturer



Working Principle

The birefringence of the substance is evaluated by comparing the light polarization states before and after the light

penetrates the object, and the magnitude of stress birefringence of the sample is determined after calculation.



Features

     Model

     SBD-S-X—X
     Working mode      Real-time measurement
     Function      Stress magnitude, stress distribution
     Detection wave band      VIS-520nm, 590nm, 650nm
     Test range      1~110nm & 1~280nm
     Spatial resolution      0.05mm
     Test repeatability      0.1nm
     Measurement frequency      >15FPS

     Note: Customized production available.

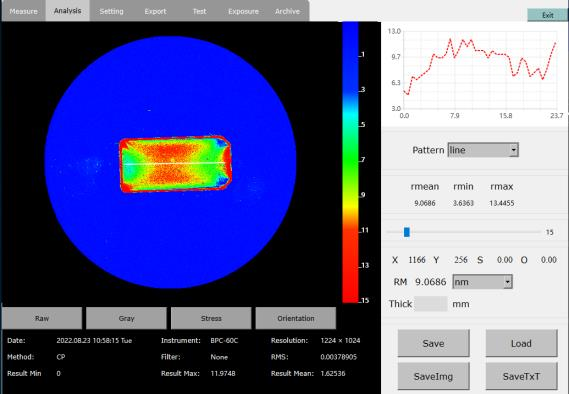

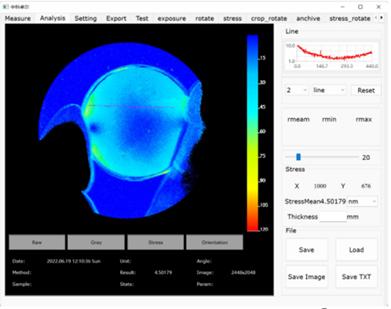

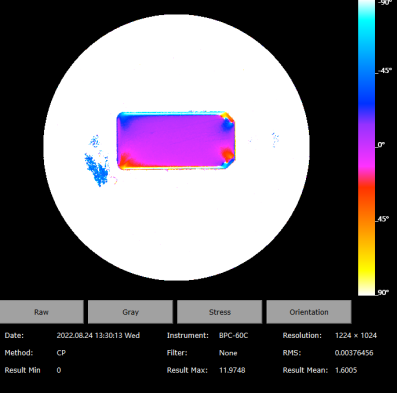

Detection Images



Our Advantages

We are manufacturer.

Mature process.

Reply within 24 working hours



Our ISO Certification





Parts Of Our Patents





Parts Of Our Awards and Qualifications of R&D
