Vehicle-Mounted Glasses Stress Birefringence Measurement System Detection Equipment
Vehicle-mounted Glasses Stress Birefringence Detection Equipment
Applications
|
VIS-visible |
Automotive industry: windshield, vehicle-mounted glass |
Working Principle
The internal stress in the transparent substance is checked based on the principle of polarized light interference.
The superposition of polarized light is realized by means of the birefringence effect of crystals, thus distinguishing
the residual stress above the transparent substance.
Features
| Model |
SBD-VG-X—X |
| Working mode | Real-time measurement |
| Function | Stress magnitude, stress distribution |
| Detection wave band | VIS-520nm, 590nm, 650nm |
| Test range | 1~110nm& 1~280nm |
| Spatial resolution | 0.05mm |
| Test repeatability | 0.1nm |
| Measurement frequency | >15FPS |
|
Note: Customized production available. |
|

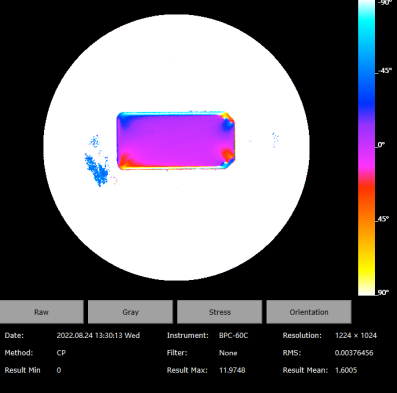

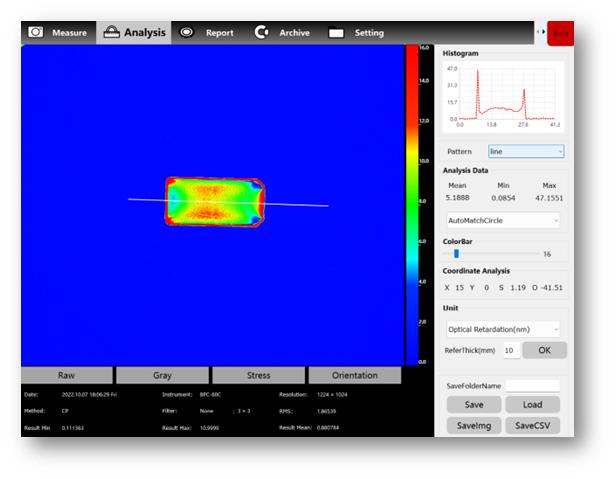

Detection Images
