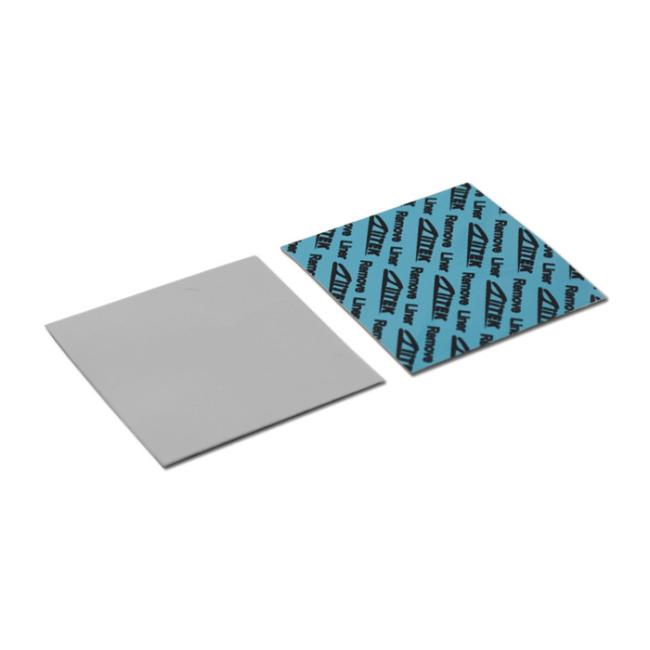

TIF100-02F Notebook Thermal Gap Filler 1.5W Silicon Thermal Pad
Notebook Thermal Gap Filler 1.5W Silicon Thermal Pad
Product descriptions

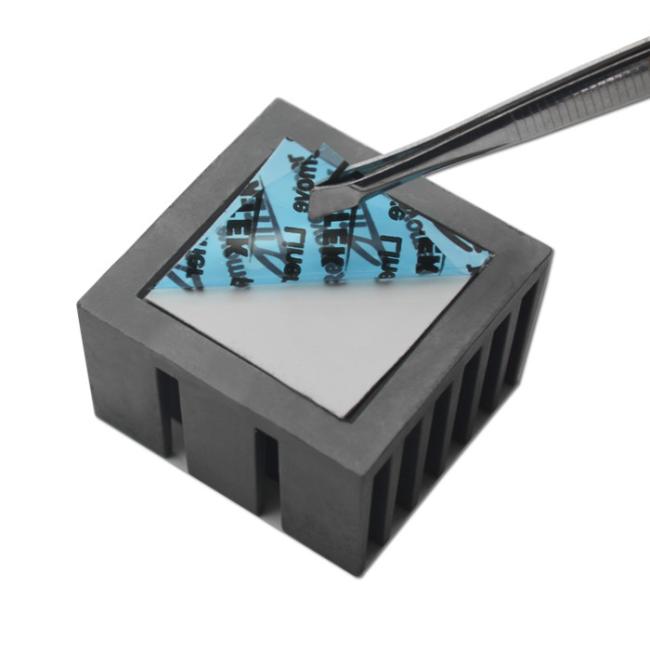

TlF®100-02F use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
> Good thermal conductive 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> RoHS compliant
> UL recognized
Application
> Mainboard/mother board
> Notebook
> Power supply
> Micro heat pipe thermal solutions
> CPU
> Mass storage devices
> Automotive electronics
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
| Typical Properties of TIF®100-02F Series | ||
| Property | Value | Test method |
| Color | Gray | ***** |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 2.3g/cc | ASTM D297 |
| Thickness range | 0.020"(0.50mm)~0.200"(5.0mm) | ASTM D374 |
| Hardness | 60 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ***** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.0 MHz | ASTM D150 |
| Volume Resistivity | 1.0X10¹² Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Outgassing(TML) | 0.35% | ASTM E595 |
| Thermal conductivity | 1.5W/m-K | ASTM D5470 |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:
8" x 16"(203mm x406mm)
Individual die cut shapesand and custom thickness can be supplied.
Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
