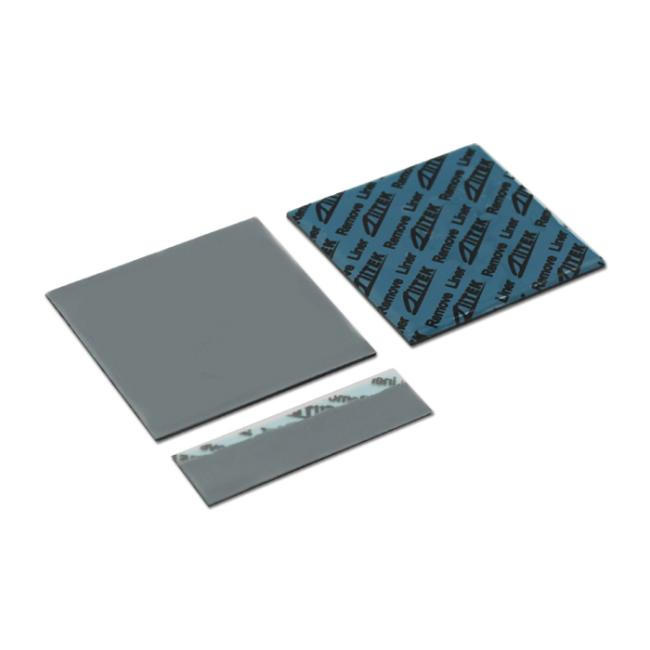

TIF100-20-10F Various Thicknesses Thermal Conductive Gap Pad For Automotive IT Infrastructure
TIF100-20-10F Various Thicknesses Thermal Conductive Gap Pad For Automotive IT Infrastructure
Products description
Ziitek TIF®100-20-10F series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®100-20-02U is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features:
> Good thermal conductive: 2.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> Easy release construction
> Electrically isolating
> High durability
Applications:
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
| Typical Properties of TIF®100-20-02U Series | ||
| Property | Value | Test method |
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Density | 2.65g/cm³ | ASTM D297 |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ****** |
| Hardness | 60 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 160 ℃ | *** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.7 MHz | ASTM D150 |
| Volume Resistivity(Ohm-cm) | ≥1.0x1012 Ohm-cm | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Outgassing(TML) | 0.35% | ASTM E595 |
| Thermal conductivity | 2.0W/m-K | ASTM D5470 |
Products Thickness:
0.020 inch to 0.200 inch(0.5mm to 5.0mm)
Products Size:
8"*16"(203mm*406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
