TIF100-40-11S Custom Size Thermal Pad 1-15W 0.5mm~5.0mm Cooling New Energy Vehicle Silicone Themals Conductive Pads
TIF100-40-11S Custom Size Thermal Pad 1-15W 0.5mm~5.0mm Cooling New Energy Vehicle Silicone Themals Conductive Pads

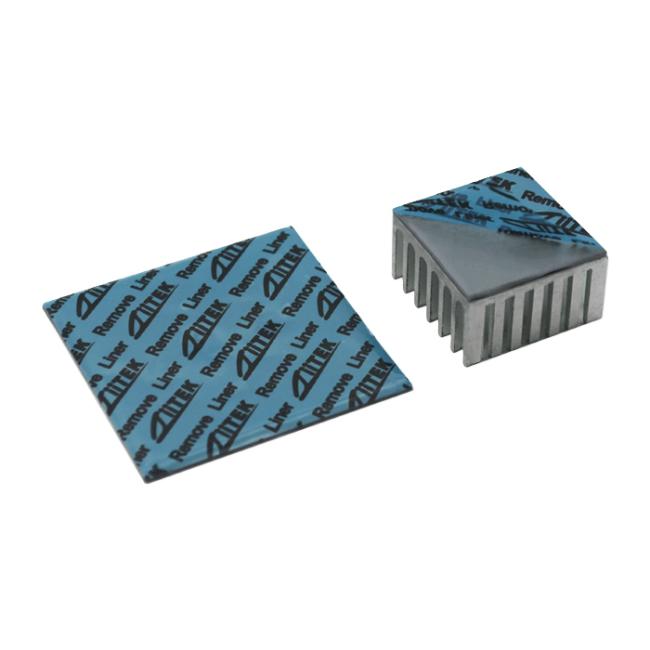

Ziitek TIF®100-40-11S is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features:
> Good thermal conductive: 4.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Easy release construction
> Electrically isolating
> High durability
Applications:
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
| Typical Properties of TIF®100-40-11S Series | ||
| Property | Value | Test method |
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Density | 3.28g/cm³ | ASTM D297 |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ****** |
| Hardness | 45±5 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 160℃ | *** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.75 MHz | ASTM D150 |
| Volume Resistivity(Ohm-cm) | 1.0X10¹² | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Thermal conductivity | 4.0W/m-K | ASTM D5470 |
Products Thickness:
0.020 inch to 0.200 inch(0.5mm to 5.0mm)
Products Size:
8"*16"(203mm*406mm)
TIF series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF series sheets type can add with fiberglass reinforced.
