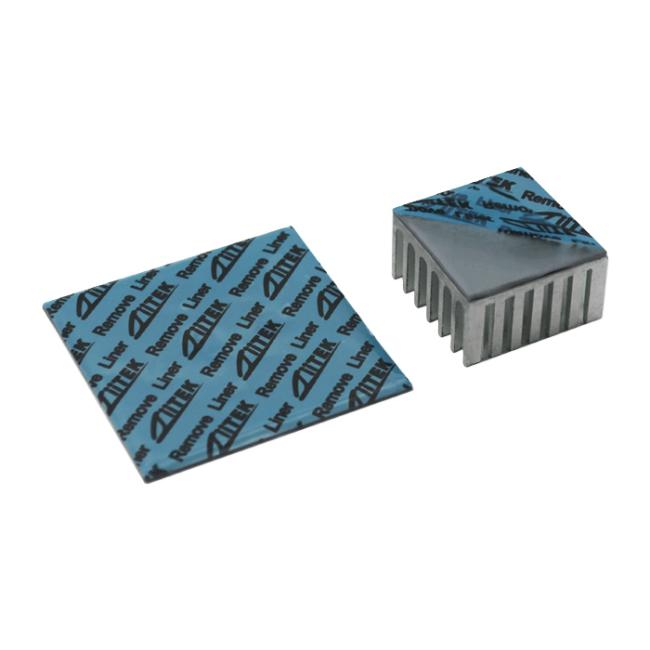

TIF700PU CPU High Thermal Conductivity Die Cut Silicon Thermal Pad For AI Processors AI Servers
TIF700PU CPU High Thermal Conductivity Die Cut Silicon Thermal Pad For AI Processors AI Servers
Features
> Excellent thermal conductivity:7.5 W/mK
> Self-adhesive without the need for additional surface adhesives
> High insulation performance
Applications
> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
| Typical Properties of TIF®700PU Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.45 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.020~0.030 (0.50~0.75) |
0.040~0.200 (1.0~5.0) | ASTM D374 |
| Hardness | 70 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 7.5 W/m-K | ASTM D5470 | |
| 7.5 W/m-K | ISO22007 | ||
Standard Thickness:0.02" (0.50 mm)~0.20" (5.00 mm) with increments of 0.01" (0.25 mm)
Standard Size: 16"X 16" (203 mmX406 mm)
Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
