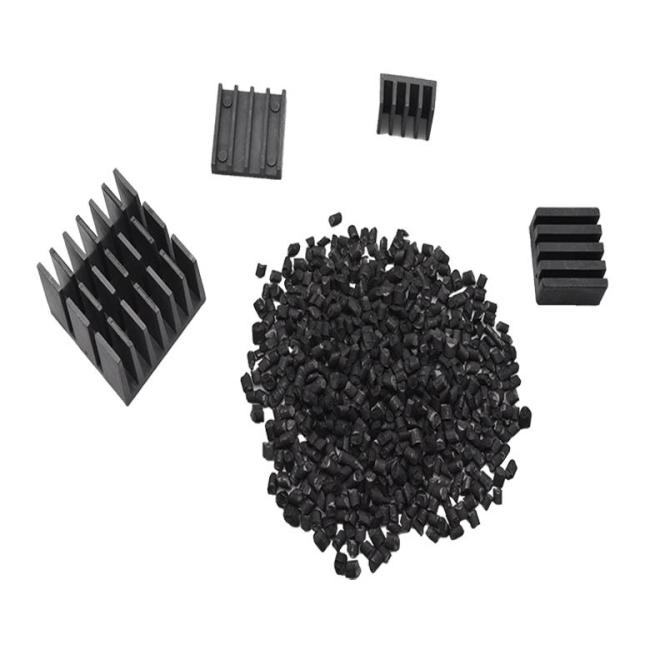

TCP200-18-02A Lighter Than Aluminum Thermally Conductive Engineering Plastics For LED Bulbs And Spotlights
Lighter Than Aluminum Thermally Conductive Engineering Plastics For LED Bulbs And Spotlights
>Even heat dissipation, preventing hotspots and reducing local deformation of parts due to high temperatures
>Lightweight, lighter than aluminum
>Easy to mold and process, no secondary processing required
>High flexibility in product design
Applications
>Heat dissipation housing for LED bulbs and spotlights, light engine substrates
>Insulation brackets and housings for batterymanagement systems
>Housings for charging equipment
>Insulation brackets and sensor housings for motordrivers,electrical junction boxes
| Typical Properties of TCP®200-18-02A | ||
| Property | Value | Test Method |
| Color | Black | Visual |
| Construction | Nylon | — |
| Melt Index (g/10min) | 150 | ASTM D1238 |
| Density (g/cm³) | 1.45 | ASTM D792 |
| Shrinkage (%) | 0.3~0.5 | ASTM D955 |
| Tensile Strength (MPa) | 55 | ASTM D638 |
| Flexural Strength (MPa) | 70 | ASTM D790 |
| Flexural Modulus (MPa) | 9000 | ASTM D790 |
| Notched Izod Impact (KJ/m²) | 4.5 | ASTM D256 |
| Dielectric Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @1MHz | 2.5 | ASTM D150 |
| Volume Resistivity (Ohm·cm) | 8.0x1012 | ASTM D257 |
| Heat Deflection Temperature (℃) | 180 | ASTM D648 |
| Vicat Temperature (℃) | 170 | ASTM D648 |
| Thermal Conductivity (Through-plane)(W/m:K) | 1.8 | ASTM D5470 |
| Flame Retardant Rating | V-0 | UL94 (E331100) |
Product Specifications
TCP®200 is provided in polyethylene granular bag,each containing 25 Kilograms.
If you would like to learn about products in different specifications,please contact our company.
If you want to learn more about thermal conductive materials,please visit our company's website.
