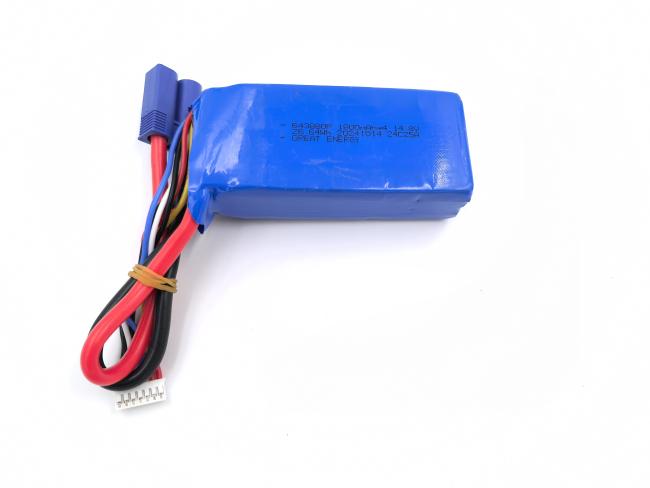

643880 14.8V 1800mAh LiPo Battery, 26.64Wh Compact 4S Drone Battery for Lightweight FPV, Mini Quadcopter & Portable Devices

643880 14.8V 1800mAh LiPo Battery, 26.64Wh Compact 4S Drone Battery for Lightweight FPV, Mini Quadcopter & Portable Devices

Features

• Ultra-Light & Compact: Designed with minimal weight and size, significantly reducing the overall system weight for improved efficiency and portability.

• High Power-to-Weight Ratio: Capable of high discharge rates relative to its size, providing responsive power for dynamic applications.

• Standard 4S Compatibility: Works seamlessly with the wide ecosystem of 4S (14.8V) compatible chargers, speed controllers (ESCs), and devices.

• Efficient for Agility: The lower capacity translates to less mass, enabling faster acceleration and more responsive handling in drones and RC models.

Specifications

Applications

• Lightweight & Micro Drones: Small to medium-sized quadcopters, FPV whoop drones, and indoor UAVs where low weight is crucial for flight performance.
• Compact FPV Racing Drones: 3-4 inch class FPV racing drones requiring a nimble and lightweight power source for high agility.
• Portable Gadgets & Gimbals: Handheld camera gimbals, portable lighting, and other compact professional equipment needing a slim 4S power pack.
• DIY Electronics & Hobby Projects: Custom robotics, RC planes, or other projects requiring a compact, high-voltage battery solution.

Warnings & Precautions

Charging

• Use Correct Charger: Only use an intelligent balance charger for LiPo batteries. Set to: LiPo Balance, 4S, 16.8V, Current ≤1.8A (1C).
• Never Unattended: Always supervise charging. Place battery in a fireproof LiPo safety bag on a non-flammable surface.
• Inspect First: Do not charge if the battery is swollen, damaged, or has been crashed.

Discharging

• Monitor Voltage Closely: Never discharge below 12.0V. Use a low-voltage alarm on your device or an external monitor.

• Respect Current Limits: Do not exceed the manufacturer's stated Max. Continuous Discharge Current (C-rate).

• Prevent Short Circuits: Always cap or tape the main terminals when not connected to a device.

• Handle with Care: Avoid puncturing, crushing, or exposing the battery to water.

Storage

• Store Safely: For long-term storage (>1 week), bring to Storage Voltage (~15.2V). Store in a cool, dry place.

• Transport Safely: During transport, place in a LiPo-safe bag with terminals insulated.

• Dispose Responsibly: Do not discard in regular trash. Fully discharge and recycle at a certified battery recycling center.
