L Or T Type Sanitary Ball Valves Butt Weld For Chemical Fluids And Pharmacy
Price:
Contact us for a competitive quote
MOQ:
Can be 1pc
Delivery Time:
Delivery upon receiving payment
Brand:
WLM
Product Description
L or T type Sanitary Pneumatic Actuator Butt Weld Three Way Ball Valves
Characteristics:
- Ball Core type design brings easy and fast operation, as well as saves cost
- Thorough flow channel offers high flow ability
- Detachable sealing gasket supports convenient repair and maintainance
- Valve can be closed and opened automatically by the intelligent pneumatic actuator with high working efficiency
- Used for changing fluids flow direction or dividing medium flows
Design Highlights:
- Aluminum Pneumatic Actuator: much lighter in weight, and more economical than stainless steel actuators
- Pneumatic actuator can be spring return or double acting with normal close or normal open mode
- Weld connection makes the valve connected with pipeline more firmly without any leakage problem or any dead area for fluids retention

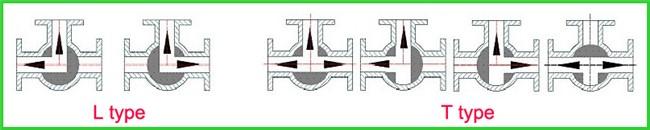

Structure:
T-type: connect three pipes for fluid flow division
L-type: connect two pipes for flow direction change
Technical Data:
| Actuator: | Aluminum pneumatic actuator |
| Operation mode: | Spring return, double acting |
| Size: | DN10 ~ DN200 |
| Body Material: | 316, 304 |
| Seal Material: | PTFE |
| Working Pressure: | 0 ~ 8 bar |
| Working Temperature: | -20℃ ~ 80℃ |
| Surface Finish: | Outside sanding polishing, inside Ra<0.8μm |
| Weld end dimension standard: | EN10357, DIN11866, DIN11850, ISO1127, ISO2037 |
| Application industries: | Food, dairy, wine, water, pharmacy, comestics, chemical fluids, etc. |
