Light Weight Sanitary Ball Valves Aluminum Pneumatic Actuator , Flanged Connection End

Light Weight Aluminum Pneumatic Actuator Sanitary hygienic Flanged 3 Three Way Ball Valves

Quick Details:

• Air pressure in pneumatic actuator automatically drives valve stem to rotate
• The ball core rotates accordingly to turn to different pipe line
• Can support very wide range of pipe diameter
• The ball core and gasket are completely separated under close and open condition from being contamintated by medium
• Reliable sealing performance and convenience for repair

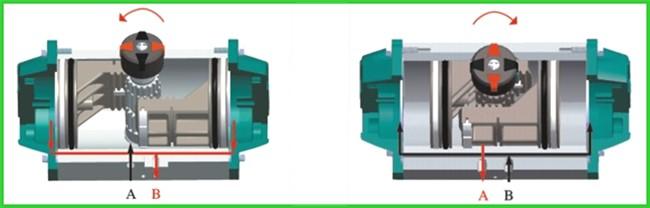

Working Principle:

1. Pneumatic spring return acting three way ball valve

When compressed air enter into port A, pistons are forced outwards, making the pinion and valve stem rotate anticlockwise,  the valve is open accordingly when air is exhausted from port B

When air pressure at port A is exhausted, springs forces the pistons inwards, making pinion turn clockwise, the valve is closed.

2. Pneumatic double acting three way ball valve

Compressed air enters the chamber from port A, forces the pistons outwards, the pinion rotate anticlockwise, and valve is open

Compressed air enters the chamber from port B, forces the pistons inwards, the pinion turn clockwise

and valve is closed

Flow Direction Diagram:

T-type: 4 way valve seat, balanced force, for flow division, mix and direction change

L-type: 2 way valve seat, for flow direction change

Specifications:
