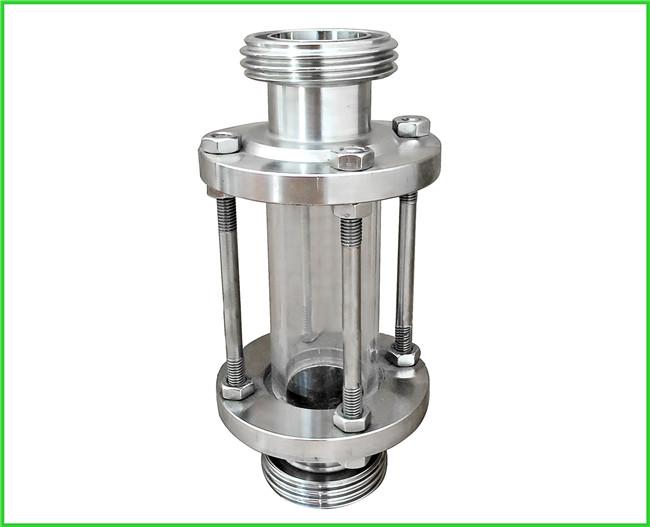

Sanitary Straight / Inline Pipe Sight Glass Male Thread Connection , Reducing Shaped
304 / 316L Stainless Steel Sanitary Hygienic Straight / Inline Tube / Pipe Sight Glass Male Thread Connection
Product Description
The food grade sanitary sight glass are designed for installation in hygienic process lines to allow visual observation of the product flow. As standard the cylindrical viewing tube is in clear food grade polycarbonate material making this range an excellent choice for use in plants with a “no glass” policy.
The viewing tube is also available in borosilicate glass where preferred for reasons of high temperature or product compatibility. All stainless steel sight glass contact metallic parts are manufactured from forged AISI 304L or 316L stainless steel with a polished surface finish. The end connections of sanitary sight glass are butt weld for tube but other connection options can be offered on request.
| sanitary sight glass Sight glass Parameters | |||
| Material | 304SS; 316(L)SS | ||
| Connection Standard | SMS,DIN,3A,ISO | ||
| Connection Type | Welding ends, Clamp, Union | ||
| Size | DN25-DN100, 1"-4" | ||
| Finish | Mirror Polish Ra<0.4um | ||
| We also accept Non-standard pipe fittings |
|||
Our Competitive Advantages:
- We use best quality stainless steel and glass ensure anti-aging, anti-corrosion functions
- We use advanced CNC machine imported from Japan to ensure accurate valve dimension
- The sight glass diameter is equal to pipe size to ensure as large flow ability as possible
- We perform strict mechanical property test and sealing test on each valve
- We do sampling lifetime cycling test out of each batch, to ensure lifetime
Specification:
| a. Size | b. DN10-DN150 & 1/2""-6" |
| c. Type | d. Straight Tube Sight Glass |
| e. Working Pressure | f. 1.0 MPa Max. |
| g. Medium Temperature | h. 0~200℃ |
| i. Optional Accessories | j. LED light available |
| k. Standard | l. ISO, DIN, IDF, 3A, SMS etc. |
| m. Material | n. SUS304, SUS316L etc. |
| o. Certificate | p. CE, ISO9001/2008, 3A |
| q. Applications | r. Dairy, food, beer, beverage, pharmacy, cosmetic, etc. |
