Sanitary T Type Sanitary Spray Balls , Double Circulating Rotating Spray Ball Tank Cleaning
Features:
Effective cleaning especially for sanitary tank with diameter upto 4.5 meters
Very high efficient cleaning function
Very low consumption of water, energy and cleaning material
Hygienic structure with self-lubricating ability on cleaning liquid
Can be connected to the tank by thread, clamp, welding or bolt
Spray in all directions to clean every part of the tank
Working Principle:
The spray cleaning ball automatically spray the cleaning liquid strongly to clean inside of the tank.
The cleaning solution make the sprayer rotary by it's motive power, then the fun jet created the whole tank and reactor with vortex. Medium remainings on the vessel inside surface can be removed effectively.
Technical Data:
| Size: | 1" ~ 2.5", DN25 ~ DN60 |
| Material: | Stainless Steel SS304,SS316L |
| Type of Cleaning Ball: | Double circulating type |
| Connection End: | Thead, Bolt, Clamp, Butt weld |
| Injection Direction: | Top area, bottom area, or 360 degrees in all direction |
| Working Pressure: | 1.0~3.0bar |
| Cleaning Radius: | 1.25mm~2mm |
| Fluxation: | 12 ~ 38 m3/hour |
| Surface Polish: | Mirror Polished, Dull Polished |
| Lubrication: | Pass to clean liquid from lubricate |
| Working temperature: | 95°C |
| Highest enviroment temperature: | 140°C |
| Moist Radius: | 3 meters |
| Jet Cleaning Redius: | Max. 2 meters |

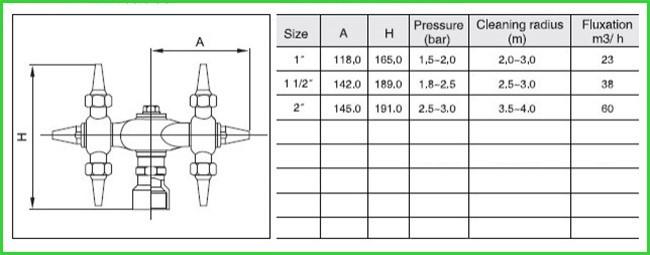

Dimensions:

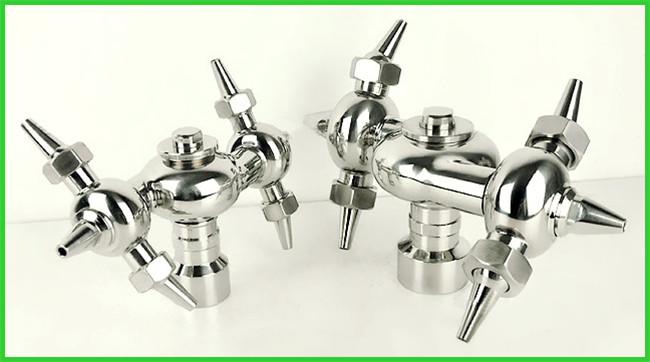

Photo Show:
