BS4825 PART 5 Sanitary Union Couplings Connection Set Recessed Ring Joint Type

BS4825 PART 5 Sanitary Recessed Ring Joint Type Union Couplings Connection Set for Hygienic Industries

Product Characteristics:

Sanitary union connection, also called quick coupling connection, is one of the most popular detachable and removable pipe connections. The whole connection set is made up of nut, male part, liner and seal. The parts are forged from stainless steel sticks.

There are two kind of connection method for the union parts end to connect to pipes, one is socket welding, the other is screw.

Advantages:

• very stable function: No human mistake during installation
• Fast connection, high efficiency, to save much time cost
• Very wide application to nearly all kinds of hygienic pipeline conditions
• Very convenient inspection, easy operation

Applications:

BS4825 PART 5 union couplings connection set is widely used to join pipes and valve together in the condition of food pipeline systems. It is detachable and can be removed and cleaned anytime if neccessary.

Specifications:

• Categories: Food grade union connections, pharmaceutical grade connections
• Size: DN25 - DN100, 1" -  4", Φ25.4 - Φ101.6
• Standards: BS 4825 PART 5, RJT
• Stainless steel: 304, 316L
• Working pressure: 10 bar
• Working temperature: -10 - +150 degrees centigrade
• OEM: Non-standard production available according to drawings and samples

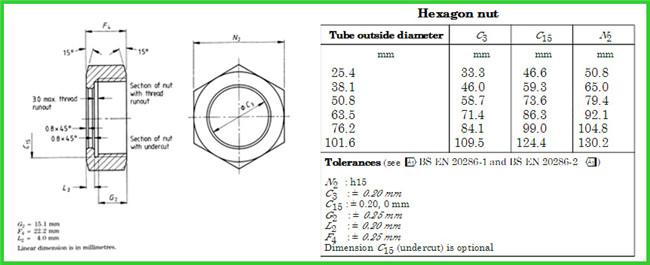

Dimensions:

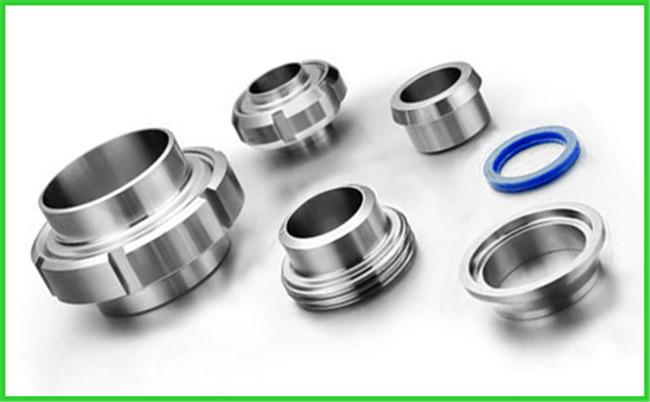

Photo Gallery:
