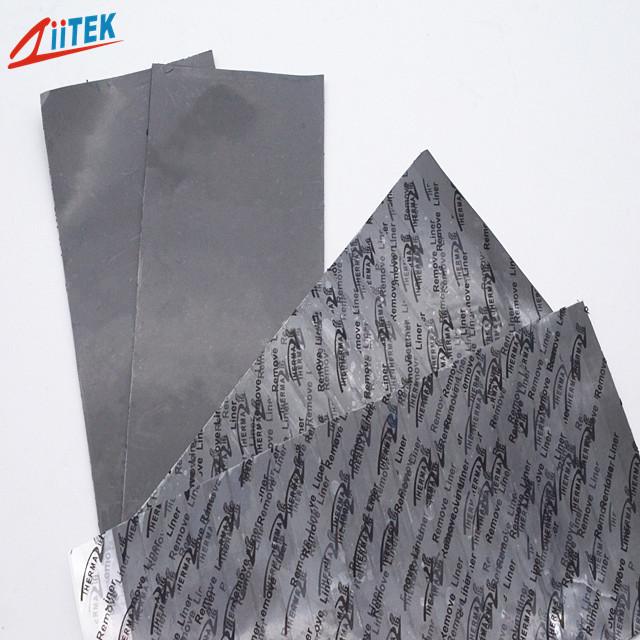

CPU Thermal Pad High Thermal Conductive Material For Heat Transfer In Electronic Devices And Telecommunication Equipment
CPU Thermal Pad High Thermal Conductive Material For Heat Transfer In Electronic Devices And Telecommunication Equipment
Company Profile
Ziitek Electronic Material and Technology Ltd(ZIITEK) has been deeply involved in the field of heat conducting materials for 20 years, and is a high-tech enterprise integrating R&D, production and sales. Headquartered in Dongguan, with four production bases in Kunshan, Taiwan Province and Viet Nam, the global delivery capacity is stable and reliable. Mainly engaged in thermal conductive silica pads, thermal conductive graphite sheets, thermal conductive insulation materials, PCM phase change materials, thermal conductive plastics, thermal conductive silicone grease/paste, thermal conductive gel, thermal conductive epoxy potting glue, thermal conductive silicone adhesive, silicone foam, and silicon-free thermal pads. The core explosive heating plate is widely recognized by the market. Our products have passed ISO9001 and IATF16949 certification, and meet RoHS/UL standards, and are widely used in new energy, 5G, data center, automotive electronics and other fields.
>High speed mass storage drives
>Heat Sinking Housing at LED-lit BLU in LCD
>LED TV and LED-lit lamps
>RDRAM memory modules
>Telecommunication hardware
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>LED floor light
>Routers
>Medical Devices
>Auditioning electronic products
>Unmanned aerial vehicle(UAV)
>Photovoltaic
>Signal communication
>New energy vehicle
>Motherboard chip
>Radiator
>AI Processors AI Servers
Key attributes
| Typical Properties of TIF®100-30-11US Series | |||
| Property | Value | Test method | |
| Colo | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 |
20 Shore 00 |
ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @1MHz | 7.0 | ASTM D150 | |
| Volume Resistivity(Ohm-meter) | ＞1.0X1012 | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity (W/m-K) | 3.0 | ASTM D5470 | |
| 3.0 | ISO22007 | ||
Product Specifications
Standard Thickness:0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
