RoHs FCC High Rigidity 12 Volt Motor High Torque Brushless Motor
Direct Drive Motor High Precision High Rigidity Low Axial Radial Runout
Direct Drive Motor High Precision High Rigidity Low Axial Radial Runout
Direct Drive Torque Motor advantage
1.There is no need for reversing inside the motor;
2.The rotor speed is independent of the load and the constant torque output characteristic is good;
3. Because there is no need for wearing parts such as carbon brush and slip ring, the maintenance workload is greatly reduced.
4. Silent, energy saving, smooth, strong power
Direct Drive Torque Motor specification:
| Specification | unit | HXC-QR080-067 | ||
| Instantaneous max output torque | N.m | 3.5 | ||
| Continuous max torque | N.m | 1 | ||
| Max speed | rps | 4 | ||
| Rated speed | rps | 2 | ||
| Series resistance | Ohm | 3.8 | ||
| Line inductance | mH | 4 | ||
| Constant torque | Nm/Arms | 0.6 | ||
| Potential constant | Vp /(krpm) | 51 | ||
| Continuous current | Arms | 1.5 | ||
| Peak current | Arms | 5 | ||
| Logarithmic | - | 11 | ||
| Precision requirement | Encoder resolution | sin-cos/rev | 8192 | |
| Absolute accuracy | arc-sec | ±32/±10 | ||
| Repeat positioning accuracy | arc-sec | ±1.5 | ||
| Origin of pulse number | pulse/rev | 1 | ||
| Max power | KVA | 0.2 | ||
| Rated power | KVA | 0.07 | ||
| Rotor inertia | kgcm2 | 6.35 | ||
| Load | Axial load | Positive direction | N | 800 |
| Reverse direction | N | 600 | ||
| Radial load | Nm | 10 | ||
| Mounting surface mechanical precision of the load | μm | 15 or less | ||
| Weight | kg | 1.6 | ||
| Environmental requirements | Temperature | °C | 40 | |
| Humidity | % | 85 | ||
| Atmospheric environment | - | No corrosive gas and dust. At an altitude of 1000 m below | ||
Direct Drive Torque Motor dimension drawing:

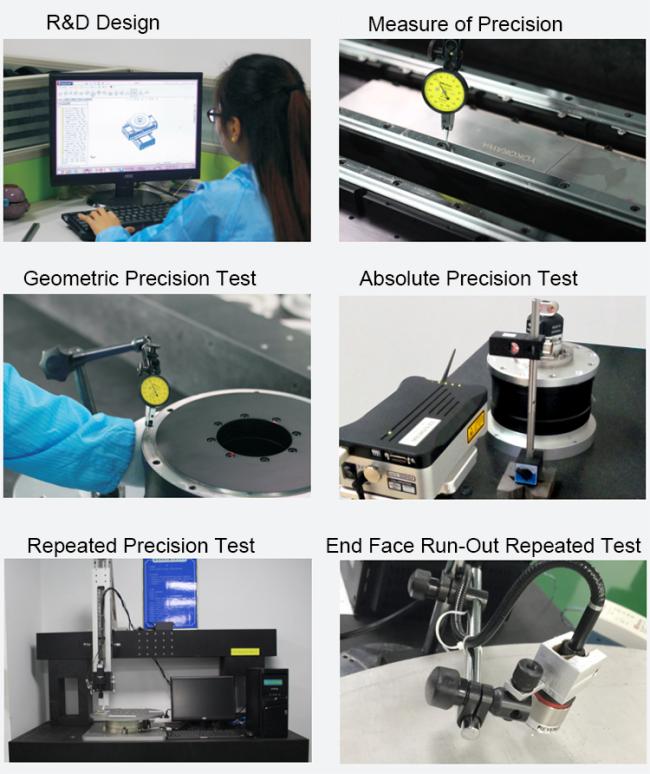

Direct Drive Torque Motor testing
FAQ:
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit →mass production →cargo ready → balance/delivery → further cooperation
Q:Which shipping way is available?
A: DHL, UPS, FedEx, EMS,Sea are available. The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver Producing and shipping?
A:Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be
accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q:Can I make a OEM order?
A:We can customize the product you want according to your needs.No matter what your automation requirement it is, you will get the satisfied answer in the cooperation with HXC.
Q:How does your factory do regarding quality control?
A:”Quality is priority.” Our team always attach great importance to quality controlling from the very beginning to the very end.
Q:What about you packages?
A:We have been exporting lots of products to overseas,no any clients make any complains on our packages.Please contact us and we will send photos to show you the details of our secure packages.
