ABZ Optical Rotary Encoder High Resolution SMT Package Rotary Encoder

Name: ABZ Optical Rotary Encoder High Resolution SMT Package Rotary Encoder
Brand: Shenzhen Haixincheng Technology Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 20

Delivery Time: 5-8work days

Brand: MicroE

Product Description

Aura Optical Encoder Absolute High Resolution Low Power Small Low Power SMT Package

Aura Optical Encoder Absolute High Resolution Low Power Small Low Power SMT Package

Aura employs a short wavelength LED for precise absolute position decoding. An incremental scale track and advanced sensor produce pure sinewave signals, enabling high resolution interpolation with run-speeds up to 83,721 rpm (with 18 mm scale). High repeatability and accuracy satisfy the most demanding applications. The small, low power consumption SMT package integrates easily into an OEM PCB. Generous alignment tolerances facilitate installation. Built-in scale eccentricity compensation improves production efficiency and eliminates the cost of dual averaging encoders. High speed BiSS-C delivers the minimal latency required for high bandwidth control loops. BiSS-C daisy-chain capability allows for reduced cabling of

multiencorder systems. SSI, SPI and ABZ interfaces complete the comprehensive connectivity options. ABZ provides communication redundancy and the flexibility to operate incrementally for the lowest latency. SmartPrecision™ III is intuitive software for calibration, alignment and status monitoring. Encoder data can be sampled and recorded in a CSV file. To simplify

installation, hubs with pre-mounted encoder scales are offered.

Benefits:

• Absolute position feedback

• Small, low power SMT package

• High resolution and accuracy

• High run-speed

• Wide alignment tolerances

• Scale eccentricity compensation

• Low communication latency

• Comprehensive connectivity

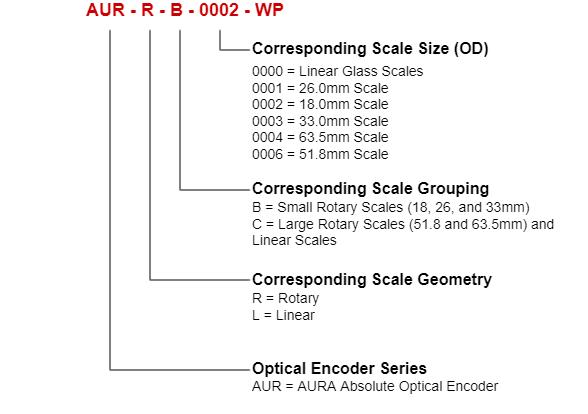

Aura Linear Encoder Part Numbers

Aura Rotary Glass Scale Part Numbers

Scale Part Number	Inner Diameter	Outer Diameter	Counts Per Rev (CPR)	Corresponding Chip Part Number
AUR-R-G-0001	12.0 mm	26.0 mm	256	AUR-R-B-0001-WP
AUR-R-G-0002	7.0 mm	18.0 mm	172	AUR-R-B-0002-WP
AUR-R-G-0003	21.0 mm	33.0 mm	343	AUR-R-B-0003-WP
AUR-R-G-0004	49.0 mm	63.5 mm	908	AUR-R-C-0004-WP
AUR-R-G-0006	38.0 mm	51.8 mm	761	AUR-R-C-0006-WP

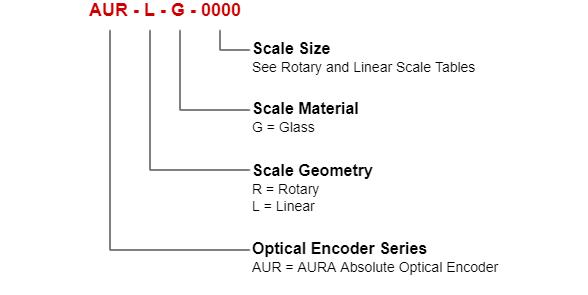

Aura Linear Glass Scale Part Numbers

Scale Part Number	Scale Measuring Length	Overall Length	Thickness	Corresponding Chip Part Number
AUR-L-G-0001	9.0 mm	16.0 mm	2.29 mm	AUR-L-C-0000-WP
AUR-L-G-0002	50.0 mm	57.0 mm	2.29 mm	AUR-L-C-OOOO-WP
AUR-L-G-0004	195.0 mm	202.0 mm	2.29 mm	AUR-L-C-OOOO-WP
