BISSC Peripheral Optical Rotary Encoder ABZ Rotary Shaft Encoder
Compliant or special couplings are not required, so the Rotor & Stator can simply be fixed directly to the host product. Precise mechanical mounting is not necessary to achieve high measurement performance and there are no bearings. The measurement performance stated in this Product Guide is guaranteed provided that the IncOder is installed as per its installation tolerances.
High-reliability Inductive Angle Encoder Technology
IncOders have 2 main parts – a Stator and a Rotor – each shaped like a flat ring. The large bore makes it easy to accommodate through-shafts, slip-rings, optical-fibres, pipes or cables.
The Stator is powered and the Rotor is passive. The Stator contains the electronics to receive power and generate an output signal. The output signal from the Stator shows the true absolute angular position of the Rotor relative to the Stator without the need of any motion.
imple Installation: ‘Fit and Forget’ Technology
IncOder inductive angle encoders do not require compliant or special couplings and the Rotor & Stator can simply be screwed to the host product. Precise mechanical mounting is not required and there are no bearings.
Whereas optical or capacitive Inductive angle encoders can be unreliable in harsh conditions – notably with condensation or dust – Zettlex Inductive angle encoders are generally unaffected by foreign matter and IP67 rated versions are available. Unlike capacitive devices, there is no need to earth the Rotor or Stator. Robust, hard-anodized aluminium alloy housings and monolithic constructions are used throughout.
There are no contacting, delicate or wearing parts, so there is no need for periodic replacement, service or maintenance. In other words, IncOder Inductive angle encoders are true ‘fit and forget’ devices.
Measurement, Electrical, Environmental & Material Data for 37mm IncOder
| Measurement | ||
| Measurement | Absolute over 360o . Note this is true absolute - no motion required at start up | |
| Resolution (101001 Product Option) | 10bits 1,024counts per rev 1265.6arc-secs 6144micro-rads | |
| Resolution (121001 Product Option) | 12bits 4,096counts per rev 316.4arc-secs 1536micro-rads | |
| Resolution (141001 Product Option) | 14bits 16,384counts per rev 79.1arc-secs 384micro-rads | |
| Resolution (161001 Product Option) | 16bits 65,536counts per rev 19.77arc-secs 96micro-rads | |
| Resolution (171001 Product Option) | 17bits 131,072counts per rev 2.47arc-secs 48micro-rads | |
| Repeatability | .+/- 1 | count |
| Static Accuracy over 360O | <150arc-seconds or <0.73milliradians | |
| Internal Position Update Period | <0.1 | millisecond |
| Thermal Drift Coefficient | <1.0 | ppm/K Full-Scale |
| Max. Speed for Angle Measurement | 10,000 | r .p.m. |
| Max. Physical Speed | 10,000 | r .p.m. |
| Electrical | ||
| Data Outputs | RS422 Compatible, supports SSI (Serial Synchronous Interface), ASI (asynchronous serial interface), SPI or BiSS-C . | |
| Power Supply | 5VDC (4.5-8VDC) or 12VDC (4.5- 14VDC) | VDC |
| Current Consumption | <100 (typically <75 and does not change significantly with voltage supply) | milliAmp |
| Reverse Polarity | PSU Reverse polarity protected to max . supply voltage | VDC |
| Zero Setting | Zero Set or Reset to factory value via Electronics Module | |
| Power Up Time To 1st Measurement | <500 | millisecond |
| Environment | ||
| Operating Temp . | Minus 45 to +85 (+65 at >8VDC power supply) | Celsius |
| Storage Temp . | Minus 55 to +125 | Celsius |
| Temperature Shock | MIL-STD-810G, Method 503.5, Procedure I- B (T1=-40 oC, T2=55 oC .) | |
| IP Rating - Rotor & Stator | IP67 for <60 minutes & 1m depth | |
| Humidity | RH 0-99% non-condensing - but unaffected by occasional condensation | |
| Salt Fog | Complies with DEF STAN 00-35 Pt. 3 Iss. 4, Test CN2 Salt Mist Test | |
| Bio Hazards | Complies with DEF-STAN 00-35 Pt. 4 Iss. 4 Section 11 (Hazards) | |
| Induced Dust & Sand | Complies with DEF STAN 00-35 Part 3 Issue 4, Test CL25 (Turbulent Dust) Cat 1 | |
| Shock | IEC 60068-2-27 100g for 11ms - axial & radial - suitable for most airborne, marine & armoured vehicles MIL-STD-810G, Method 516.6, Procedure I- Functional Shock - axial and radial - 40 g 11 ms, sawtooth waveform | |
| Vibration | IEC 60068-2-6 20g for 10-2000Hz - axial and radial - suitable for most high vibration & airborne environments MIL-STD-810G, Method 514.6, Procedure I - axial and radial - Category 20, for tracked vehicles | |
| Environmental pressure range | 0 to 4 (in other words vacuum to 4) | Bar |
| Max. permissible press. change rate | 1 | Bar/second |
| EMC Radiated Susceptibility | (Installed) Complies with IEC 61000-6-2 - suitable for fitment in harsh EMC environments | |
| EMC Radiated Emissions | (Installed) Complies with IEC 61000-6-4 - suitable for fitment adjacent to EMI sensitive devices | |
| Miscellaneous | ||
| Mass Set-Screw Rotor (max.) | 10 (for 8mm bore) | grams |
| Mass Plain Rotor (max.) | 7 (for 8mm bore) | grams |
| Mass Screw Mount Stator (max.) | 20 (for 8mm bore) | grams |
| Mass E- Module in Housing | 25 | grams |
| MTBF | 0.22 failures per 1M hours based on MIL- HBK-217+ method for ground military vehicles at 20Celsius average | |
| MTBF | 0.35 failures per 1M hours based on MIL- HBK-217+ method for naval sheltered at 35Celsius average | |
| Hazardous materials | Standard range - Hazardous materials not used. RoHS compliant. RoHS certificate available. REACH statement available. | |
| Outgassing materials | Complies with NASA class'n as low outgas matl. with TML <1% & CVCM <0.1% at 125C & 24hrs in vacuum to ASTM E-595-90 | |
| ITAR classification | Not ITAR controlled. No ITAR components. | |
| Approvals | Flammability Rating UL94V-0. Standard range - RoHS compliant - RoHS certificate available. REACH statement available. | |
| Marking | Zettlex, logo, CE & UL94V-0 printed on Rotor & Stator faces; Serial Number label. | |
| Country of Manufacture | UK | |
| Export Licence Requirements | Not required for standard product options | |

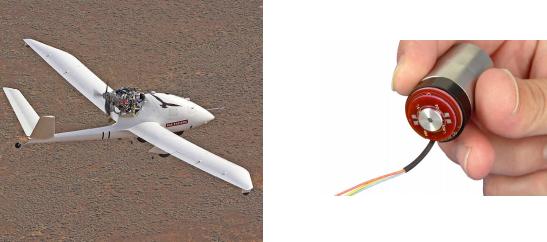

Inductive Encoder Applications – Flight Controls

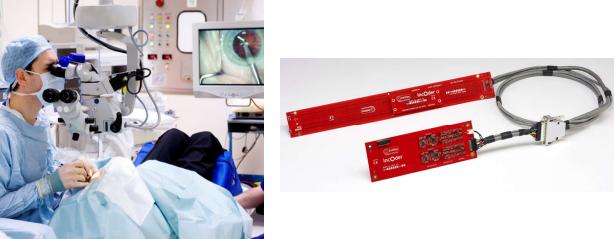

Inductive Encoder Applications – Medical

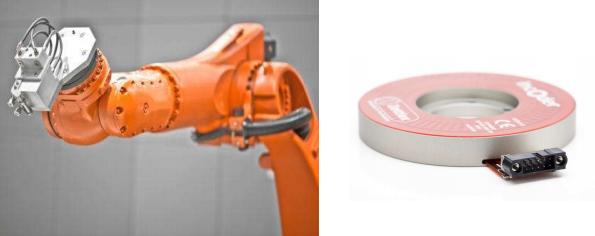

Inductive Encoder Applications – Industrial Robotics
