23N 92N Ironless Linear Motor Low Weight Low Force Linear Motor
Ironless Linear Motors EL32 Series Low Force Applications: Force Range Fc:11.5-23N, Fp:46-92N
| Ironless Linear Motor Performance | |||||
| Parameter | Remarks | Symbol | Unit | EL32-03 | EL32-06 |
| Winding Type | S | S | |||
| Motor type | 3 phases synchronous Ironless, 45Vacrms (60Vdc) | ||||
| Peak Force@20℃/s ↑ | Magnet@25℃ | Fp | N | 46 | 92 |
| Continuous Force | Coil@110℃ | Fc | N | 11.5 | 23 |
| Maximum Speed | 60V | Vmax | m/s | 5 | 5 |
| Motor Force Constant | Mount. Sfc.@20℃ | K | N/Arms | 7.3 | 7.3 |
| Motor Constant | Coils@25℃ | S | N²/W | 7.5 | 15 |
| Ironless Linear Motor Electrical | |||||
| Peak Current | Magnet@25℃ | Ip | Arms | 6.3 | 12.6 |
| Continuous Current | Coil@110℃ | Ic | Arms | 1.6 | 3.2 |
| Back EMF | Phase-Phase peak | Bemf | V/M/S | 6 | 6 |
| Resistance Per Phase | Coil@25℃ | Rph | Ω | 2.4 | 1.175 |
| Induction Per Phase | I<0.63lp | Lph | mh | 0.8 | 0.4 |
| Electrical Time Constant | Coil@25℃ | τe | ms | 0.355 | 0.355 |
| Power Loss | All coils | Pc | W | 24 | 47 |
| Thermal | |||||
| Thermal R. | Coils to mount. Sfc. | Rth | ºC/W | 3.2 | 1.6 |
| Temp. Sensor | Temperature Cut-off | NTC Optional | |||
| Mechanical | |||||
| Coil Unit Weight | ex.cables | W | Kg | 0.04 | 0.06 |
| Coil Unit Length | ex.cables | L | mm | 49 | 89 |
| Motor Attraction Force | Rms@0A | Fa | N | 0 | 0 |
| Magnet Pitch | N-N | τ | mm(AWG) | 24 | 16.5 |
| Cable Mass | M | Kg/m | 0.065 | 0.065 | |
| Cable Type( Flex.cable) | length 1m | d | mm(AWG) | 4.5(24) | 4.5(24) |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 4.5(3*0.3mm2) | |
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | customizable | |
| Cable life | Minimum | Cycles | ≥12,000,000 | ||
| Bending Radius Static | Minimum | mm | ≥4xφ | ||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ||

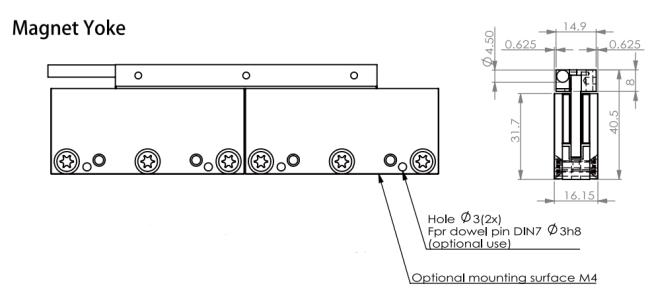

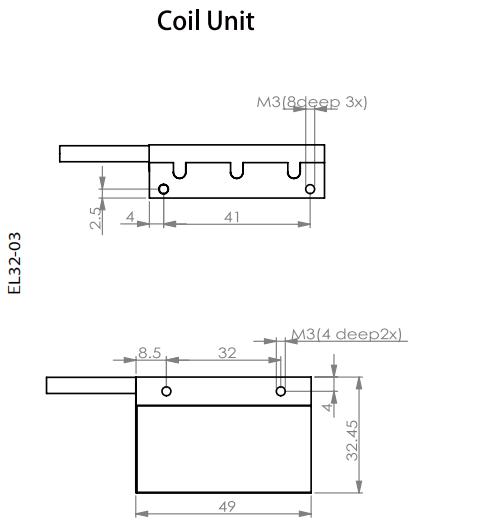

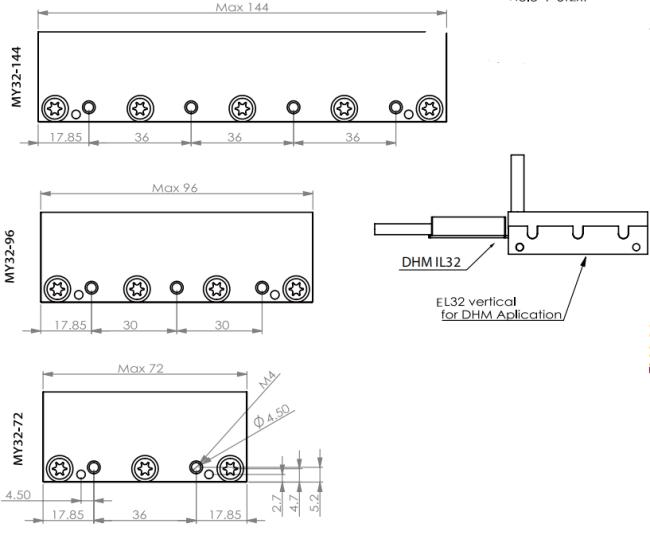

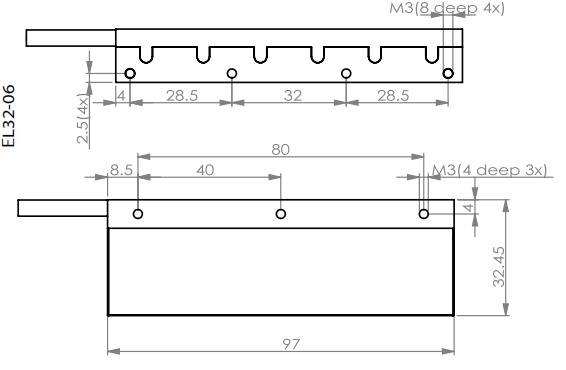

Ironless linear motor dimension drawing:
