Lightweight DC Servo Driver High Positioning Micro Servo Driver Smaller Size
Micro Servo Driver Has High Positioning Accuracy Fast Response Smaller size and lighter weight
Micro Servo Driver Has High Positioning Accuracy Fast Response Smaller size and lighter weight
• High power density.
• Compact design(compact power supply/compact servo/compact motor)
• Different encoder feedback (abs/incremental/hall)
• Different motor types (rotating motor/linear motor / BLDC / torque motor).
• Standard communication protocol for EtherCAT & CANopen.
• Current bandwidth 2.5KHz; high current driving.
• High performance algorithm: PPPVPTHM CSP CSVCST;IIRFIR filter; dynamic PID.
• High and flexible control loop order to deal with any mechanical dynamic system characterist.
• Smart pc tools, local language interface.easy using; easy input for parameters; patterning tuning
• Complies with safety, EMC and Environmental standards.
• Utmost efficiency of up to 99%.characteristic.
| Diamond | SDS01-A001 | SDS01-A005 | SDS01-A010 | SDS01-A020 |
| Rated Supply Voltage Range | 12V-60V | |||
| Maximum Input Voltage | 72V | |||
| Maximum Continuous Current (RMS) | 1A | 5A | 10A | 20A |
| Peak Current (RMS) | 2.5A | 12.5A | 25A | 50A |
| Peak Current Duration | 3s | |||
| Efficiency At Rated Power | >99% | |||
| Digital Input | 6 way DI (NPN. PNP) | |||
| Digital Output | 4 way Do | |||
| Analog Input | 2 analog inputs (±10V) | |||
| Number Of Axes | Uniaxial | |||
| Communi Cation Mode | C:Canopen,Modbus,Analog quantity E:EtherCAT | |||
| Speed Fbk Sel | A:Tamakawa absolute value. Incremental ABZ.HALL | |||
| Appearance Structure | 0: default---high power terminal undefined large radiator; 1: customized----high power terminal and small radiator; 2: customized---small power terminal and large radiator; |
|||
| Working Environment Temperature | 0:0~50℃(default)； 1:-40~50℃； 2:-55~50℃； 3:-70~50℃； |
|||
| Special Functions | O: Default, no special function | |||
| Basic Functions | A: No STO function(default); S: support STO function; |
|||
| Weight | Canopen:53g Ethercat :67g |
|||
| Size | Canopen: 55*50*25mm Ethercat:75*55*35mm |
|||
| Installation Method | Plane installation | |||

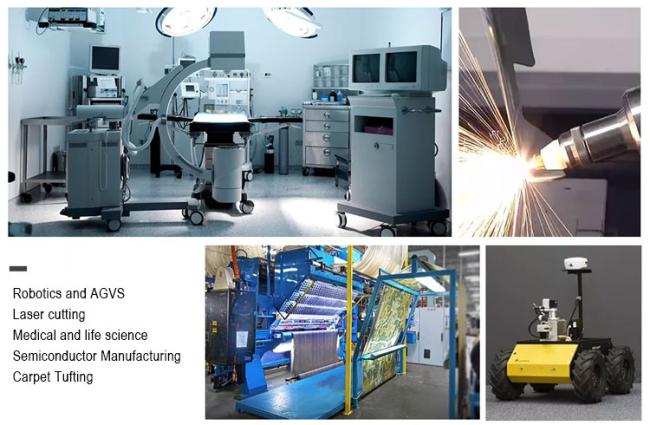

Application area
Product certificate
FAQ
Q1. Can I have a sample order?
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 5-7 workdays.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: By express or air or sea .
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%
Q9:How is your quality control?
A: Our professional QC will check the quality during production and carry out quality test before shipment.
