One Piece Linear Rotary Actuators Accuracy 17bit Linear Rotary Motor
One-Piece Linear Rotary Motor Effective Trip 15mm Encoder Accuracy 17bit
One-Piece Linear Rotary Motor Effective Trip 15mm Encoder Accuracy 17bit
1. The thrust repetition accuracy is better than 0.01N
2. The motor shaft to achieve simultaneous rotation and linear motion
3. Hollow shaft design, easy to absorb materials
4. Z axis drop design, built-in spring
5. Extremely compact structure, built-in grating
| Model | Voltage(VDC) | Size(mm) | Weight(g) | Straight axis | ||||
| Effective trip(mm) | Maximum thrust(N) | Continue to push(N) | Force constant(N/A) | Resistance(Ω) | ||||
| GAS-LRS2015-1-48 | 48 | 130X80X20 | 605 | 15 | 12 | 6 | 5 | 23.1 |
| Sustained current(Amp) | Maximum current(Amp) | Inductance(mH) | Vacuum V, spring S | Driver | ||||
| 1.2 | 2.8 | 4.25 | V,S | Pulse/bus | ||||
| Rotary axis | ||||||||
| Peak torque(mN.M) | Rated torque(mN.M) | Encoder(Bit) | Rated speed(RPM) | Driver | ||||
| 43.5 | 17.5 | 17 | 3000 | Pulse | ||||

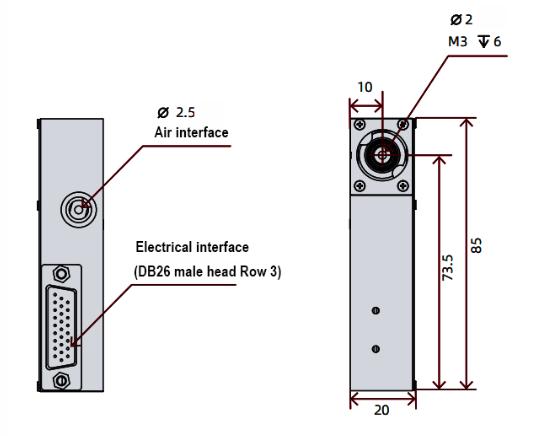

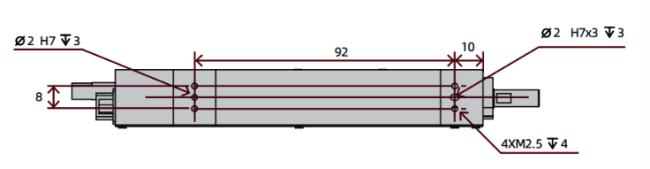

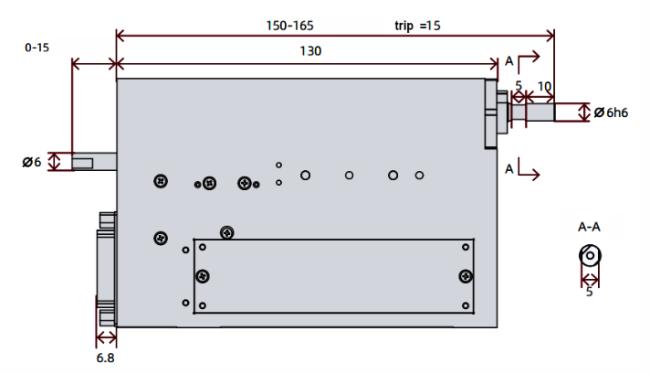

Product size drawing

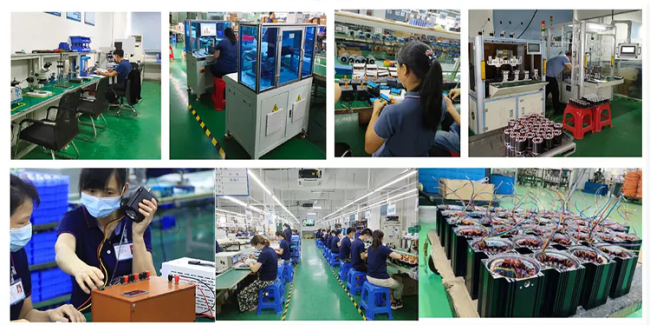

Factory environment

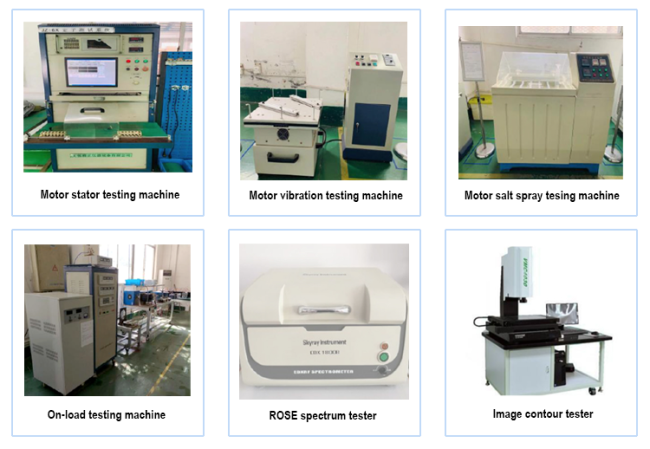

Test equipment
Product certificate
FAQ
Q1:Are you a factory or trading company?
A:We are an integrated service company specializing in manufacturing automation equipment and are committed to helping customers improve productivity; the company has strong design and research and development capabilities, production capabilities and excellent service teams, and we have our own brand.
Q2:Can I make a OEM order?
A:We can customize the product you want according to your needs.No matter what your automation requirement it is, you will get the satisfied answer in the cooperation with HXC.
Q3:How does your factory do regarding quality control?
A:”Quality is priority.” Our team always attach great importance to quality controlling from the very beginning to the very end.
Q4:What about you packages?
A:We have been exporting lots of products to overseas,no any clients make any complains on our packages.Please contact us and we will send photos to show you the details of our secure packages.
