Nanoscale Resolution ZR Voice Coil Motor With Grating Encoder
ZR Voice Coil Motor With High Precision Grating Encoder Nanoscale Resolution
ZR Voice Coil Motor With High Precision Grating Encoder Nanoscale Resolution
ZR voice coil motor with high precision grating encoder, nanoscale resolution. Actuators for direct-drive motor, cooperate with nanoscale grating encoder, fixing to the same point repeatedly, the precision of the stop position deviation of plus or minus 1 microns.
Voice coil actuator is proportional to the current relationship between the force created by the collocation of high-performance guide rail, and no contact and coil of the motor stator, no wear and tear, maximum plus or minus 0.01 N precision force control.
ZR voice coil motor is a highly integrated design, the thickness of the series of products to minimum of 20 mm, sharply save module equipment internal space, the combined motor matrix arrangement.
Function of intelligent soft landing can with precision control, soft contact objects, lowering the precision fragile or scratched parts high unit price rate, chip rate and improve the yield and capacity.
ZR2025 Product specification:
| ZR2025 | |||||||
| Straight line part parameter | Rotating part parameters | Electrical interface definition | |||||
| Parameter | Numerical | Parameter | Numerical | Interface | Define | Interface | Define |
| Effective stroke(mm) | 25 | Rated torque(mNm) | 17.5 | 1 | A+ | 14 | GND |
| Resolution(μm) | 0.1,0.5,1 | Encoder(Bit) | 17 | 2 | B+ | 15 | BAT- |
| Continue to push(N) | 6 | Instantaneous torque(mNm) | 43.8 | 3 | Z+ | 16 | PS+ |
| Peak thrust(N) | 15 | Rated current(A) | 1.3 | 4 | +5V | 17 | +5V |
| Sustained current(A) | 1.2 | IInstantaneous current(A) | 3.3 | 5 | GND | 18 | W |
| Peak current(A) | 2.5 | Constant torque(mNm/A) | 13.2 | 6 | GND | 19 | LM+ |
| Force constant (N/A) | 5.4 | voltage(V) | 24~48 | 7 | PS- | 20 | |
| DC resistance(Ω) | 13.5 | Rated speed (rpm) |
3000 | 8 | BAT+ | 21 | LM- |
| Inductance (mH) | 2.5 | 9 | 22 | ||||
| voltage(V) | 24~48 | 10 | A- | 23 | U | ||
| 11 | B- | 24 | |||||
| 12 | Z- | 25 | V | ||||
| 13 | +5V | 26 | |||||

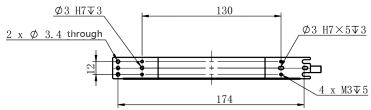

Product dimension drawing:

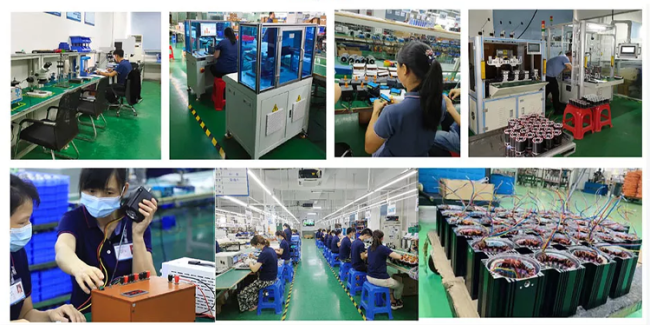

Factory environment

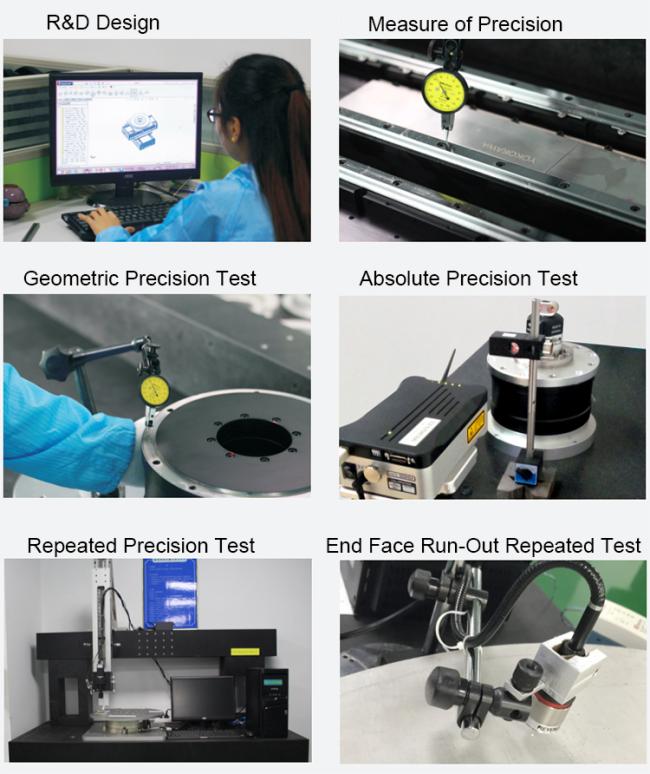

Product testing
Product certificate
FAQ
Q: How long is the deliver Producing and shipping?
A:Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be
accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q:Can I make a OEM order?
A:We can customize the product you want according to your needs.No matter what your automation requirement it is, you will get the satisfied answer in the cooperation with HXC.
Q:How does your factory do regarding quality control?
A:”Quality is priority.” Our team always attach great importance to quality controlling from the very beginning to the very end.
Q:What about you packages?
A:We have been exporting lots of products to overseas,no any clients make any complains on our packages.Please contact us and we will send photos to show you the details of our secure packages.
