5.5N.M To 22N.M Small Torque Motor Continuous Ironless Curve Motor
Small middle toque ironless curve motor, continuous torque range from 5.5N.m to 22N.m
Small Middle Toque Ironless Curve Motor Continuous Torque Range From 5.5N.M To 22N.M
| Parameter | Remarks | Symbol | Unit | EL59C-6 |
| Winding Type | S | |||
| Motor type | 3 phases synchronous Ironless, 230Vacrms (320Vdc) | |||
| Peak Force@6℃/s ↑ | Magnet@25℃ | Tp | N.m | 40 |
| Continuous Force | Coil@110℃ | Tc | N.m | 11 |
Electrical
| Parameter | Remarks | Symbol | Unit | EL59C-6 |
| Current@Tp | Ip | Amps | 10.5 | |
| Max.Current@Tc | Ic | Amps | 3 | |
| Maximum Speed | @Tc@320Vrms | nmax | Rmp | 576 |
| Motor Torque Constant | Kt | Nm/Arms | 3.67 | |
| Motor Constant | Coil@25℃ | Km | Nm/W | 1.6 |
| Back EMF Constant | 25℃+/-10% | Bemf | V/(rad/sec) | 2.12 |
| Resistance Per Phase | Coil@25℃ | Ohm | 2.75 | |
| Inductance Per Phase | I<0.63lp | Lph | milli-Henry | 0.9 |
| Electrical Time Constant | Coil@25℃ | τe | ms | 0.33 |
| Max. Continuous Power Loss | All Coils | Pc | W | 98 |
Mechanical
| Parameter | Remarks | Symbol | Unit | EL59C-6 |
| Coil Unit Weight | ex.cables | Wc | Kg | 0.16 |
| Magnet Yoke 72°Weight | Wm | Kg | 0.98 | |
| Magnet Pitch | N-N | τ | Degree | 9 |
Product dimension drawing:
Application area

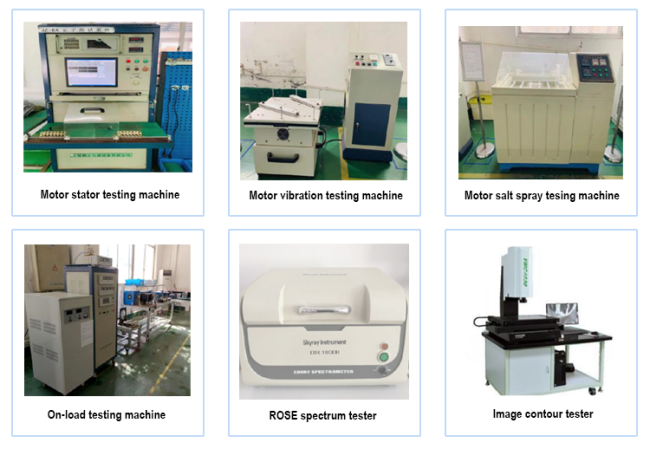

Product testing
