Frameless Motor OD 65mm Increase DC Motor Torque ID 15mm Compact High Torque DC Motor
Direct Drive Torque Motor OD 65mm Increase DC Motor Torque ID 15mm Compact High Torque DC Motor
Increase Torque Motor With Improved Torque Specs Compact design with large hollow shaft
Torque motor is a kind of special motor with more poles, which can continue to operate at low speed and even when the rotor is blocked (that is, the rotor can not rotate) without causing damage to the motor. In this mode, the motor can provide a stable torque to the load.
A torque motor may also provide torque in the opposite direction of operation.
The shaft of a torque motor outputs power not at constant power but at constant torque.
Performance
| Parameter | Remarks | Symbol | Unit | TMXSL65-17 | TMXSL65-25 | TMXSL65-34 | TMXSL65-60 | TMXSL65-92 |
| Winding Type | N | N | Y | Y | Y | |||
| Motor type | 3 phases synchronous Ironcore 230Vac rms (320Vdc) | |||||||
| Peak torque@20℃/s increase | Magnet@25℃ | Tp | Nm | 0.28 | 0.85 | 1.44 | 3.84 | 3.84 |
| Continuous torque | Coil@110℃ | Tc | Nm | 0.07 | 0.21 | 0.36 | 0.96 | 0.96 |
| Maximum Speed | @Tc | nmax | rpm | 141107 | 70554 | 86392 | 59455 | 59455 |
| Motor Torque Constant | Up to Ic | Kt | Nm/Arms | 0.015 | 0.03 | 0.025 | 0.067 | 0.067 |
| Motor Constant | Coils@25℃ | Km | Nm²/W | 0.0001 | 0.0003 | 0.0005 | 0.0016 | 0.0016 |
Electrical
| Peak Current | Magnet@25℃ | Ip | Arms | 18.7 | 28.4 | 58.8 | 57.5 | 56.6 |
| Max.Continuous Current | Coil@110℃ | Ic | Arms | 4.7 | 7.1 | 14.7 | 14.4 | 14.2 |
| Back EMF Phase to Phase peak | Coil@110℃ | Kep | V/krpm | 1.29 | 2.58 | 2.11 | 5.75 | 9.73 |
| Back EMF Phase to Phase RMS | 25℃+/-10% | Ke | V/krpm | 0.91 | 1.83 | 1.49 | 4.06 | 6.88 |
| Resistance Per Phase | 25℃+/-10% | Rph | Ω | 0.73 | 1.02 | 0.38 | 0.95 | 1.28 |
| Induction Per Phase | Coil@25℃ | Lph | mh | 0.37 | 0.67 | 0.3 | 1.08 | 1.72 |
| Electrical Time Constant | I<0.63lp | τe | ms | 0.5 | 0.7 | 0.8 | 1.1 | 1.3 |
| Max. Continuous Power Loss | Coil@25℃ | Pc | W | 62 | 200.5 | 315.8 | 766.4 | 1000.8 |
| Poles | All coils | Nmag. | nr | 8 | 8 | 8 | 8 | 8 |

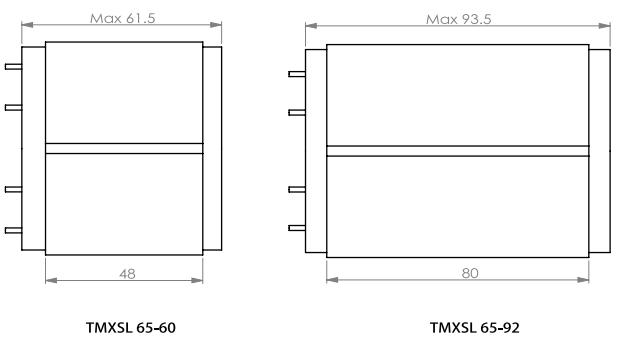

Product dimension drawing:
