Low Noises Minimal Drift Galvanometer Scanner 22mm Dynamic Focus Module
Dynamic Focus Module Extremely Low Noises Excellent Linearity And Minimal Drift
Dynamic Focus Module Extremely Low Noises Excellent Linearity And Minimal Drift
VCM G2 adopts full digital galvanometer driver, digital driver board of basic FPGA, stable performance, not easy to be disturbed, flexible to use, easy to debug. Modular design, easy to assemble. According to customer requirements, we can choose lenses with different aperture, high positioning accuracy and small drift. Mainly used for dynamic focusing, can be combined with the laser scanner head to form 3D modules, widely used in 3D marking, 3D printing, large area processing and other laser marking applications.
Key Features Of Vcm G2
The VCM G2 adopts a new mechanical design that cleverly converts the rotary motion of the galvanometer into linear motion
The dynamic following error is less than 1.5ms, and the response speed is improved by more than 50% compared to traditional voice coil motors
All-digital motor drive scheme, stable performance
Technical parameters
| specifications | VCM G2 |
| Input Beam Aperture (mm) | W22 |
| Output Beam Aperture (mm) | / |
| Travel Length (mm) | 9 |
| Tracking Error (ms) | 1.5 (≤6mm) 2.2 (18mm~22mm) |
| Typical Speed (mm/s) | ≤100 |
| Focus Speed (m/s) | / |
| Repeatability (pm) | <1 |
| Nonlinearity (%) | 2 |
| Long-term Drift over 8 hours (μm) | <10 |
| Power Requirements | ±15VDC,≥3A |
| Communication Protocol | XY2-100 |
| Operation Temperature (℃) | 25±10 |

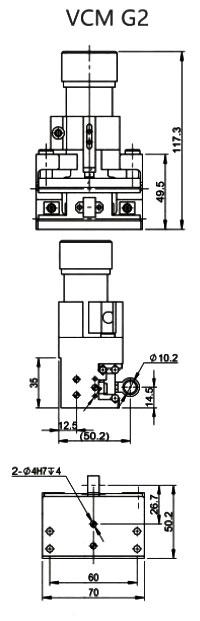

Technical drawing
FAQ:
Q1:Are you a factory or trading company?
A:We are an integrated service company specializing in manufacturing automation equipment and are committed to helping customers improve productivity; the company has strong design and research and development capabilities, production capabilities and excellent service teams, and we have our own brand.
Q2:Can I make a OEM order?
A:We can customize the product you want according to your needs.No matter what your automation requirement it is, you will get the satisfied answer in the cooperation with HXC.
Q3:How does your factory do regarding quality control?
A:”Quality is priority.” Our team always attach great importance to quality controlling from the very beginning to the very end.
Q4:What about you packages?
A:We have been exporting lots of products to overseas,no any clients make any complains on our packages.Please contact us and we will send photos to show you the details of our secure packages.
Q5:What's your payment term?
A:L/C, T/T, Western Union
Product certificate

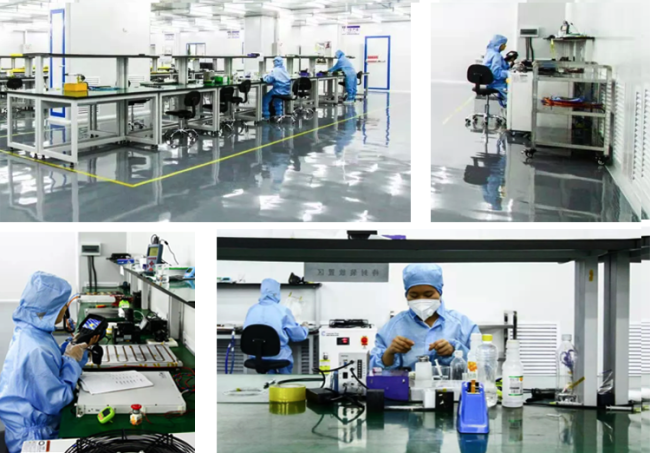

Factory environment
