Easy Installment Galvanometer 20mm Scanner Ultra Scan Head Modular
Ultra Scan Head Modular Design Easy Installment And Maintenance Support varieties of F-theta lenses
Key Features Of UltraScan Head
Ultra Scan Head Modular Design Easy Installment And Maintenance Support varieties of F-theta lenses
Low noises, high linearity and low drift
Modular design, easy installment and maintenance
Support varieties of F-theta lenses
Available to general protocol (XY2-100) and other protocol
Technical parameters
| UltraScan I | UltraScan20 |
| Input Beam Aperture (mm) | 20 |
| Beam Displacement (mm) | 25.25 |
| Tracking Error (ms) | 0.45 |
| Repeatability (µrad) | ＜2 |
| Offset Drift (µrad/K) | ＜15 |
| Gain Drift (ppm/K) | ＜80 |
| Long-term drift over 8 hours (mrad) | ＜0.3 |
| 1% Of Full Scale (ms) | 0.8 |
| 10% Of Full Scale (ms) | 2.5 |
| Positioning Speed (m/s) | 5 |
| Typical Scan Angle (°) | ±25 |
| Gain Error (mrad) | <5 |
| Zero Offset (mrad) | <5 |
| Nonlinearity (%) | <0.4 |
| Power Requirements | ±15VDC, ≥3A |
| Communication protocol | 16bit:XY2-100 20bit:ST2-100 |
| Operation Temperature (℃) | 25±10 |
| Weight (kg) | 5 |
Scanner Galvanometer in Laser Welding Applications
While using the laser welding system, the post-welding process is greatly reduced, mainly for the welding of thin-wall materials and precision parts, which can realize spot welding, butt welding, overlapping welding and sealing welding.
Laser welding technology has been widely used in mold manufacturing, including mobile phone, spot welding for lithium ion batteries, digital products, automobile and other industries. As a high-tech enterprise, Han's Scanner provides the best solutions for machine tools, laser technology, electronics, robotics and automation. No matter how specific and complex the manufacturing challenges you face, innovative products can always be trusted.

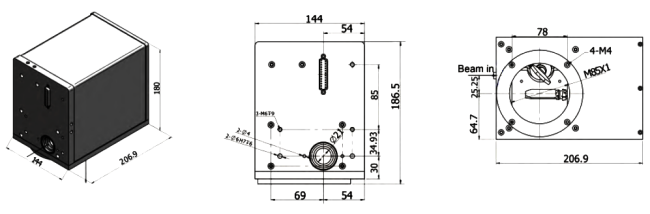

Technical drawing
