High Output Small Heating Laser Galvo 0.7ms High Speed Galvo Scanner
Ultra Scan Head High Output Power Small Heating Small Drift Low Noises
Key Features Of UltraScan Head
Ultra Scan Head High Output Power Small Heating Small Drift Low noises
Low noises, high linearity and low drift
Modular design, easy installment and maintenance
Support varieties of F-theta lenses
Available to general protocol (XY2-100) and other protocol
Technical parameters
| Ultra Scan I | Ultra Scan30 |
| Input Beam Aperture (mm) | 30 |
| Beam Displacement (mm) | 35.61 |
| Tracking Error (ms) | 0.7 |
| Repeatability (µrad) | ＜2 |
| Offset Drift (µrad/K) | ＜15 |
| Gain Drift (ppm/K) | ＜80 |
| Long-term drift over 8 hours (mrad) | ＜0.3 |
| 1% Of Full Scale (ms) | 1.2 |
| 10% Of Full Scale (ms) | 4.5 |
| Positioning Speed (m/s) | 3 |
| Typical Scan Angle (°) | ±25 |
| Gain Error (mrad) | <5 |
| Zero Offset (mrad) | <5 |
| Nonlinearity (%) | <0.4 |
| Power Requirements | ±15VDC, ≥3A |
| Communication protocol | 16bit:XY2-100 20bit:ST2-100 |
| Operation Temperature (℃) | 25±10 |
| Weight (kg) | 5.2 |
Technical drawing
FAQ:
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T, Western Union, L/C.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.

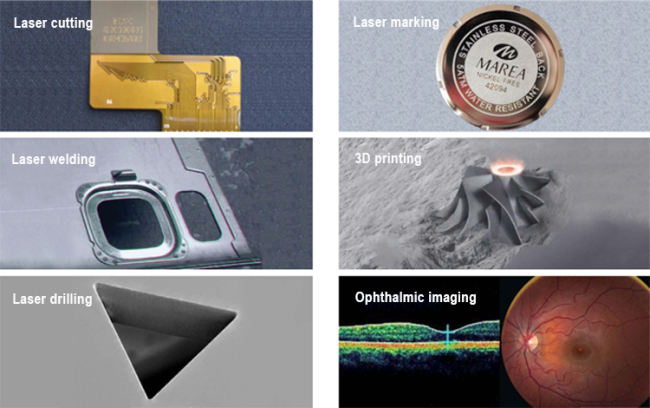

Galvanometer Application
Our scanner systems can process non-metallic and partiaI metallic materials. It is widely used in many industries, such as food packaging, beverage packaging, pharmaceutical packaging, architectural ceramics, buttons, craft gifts, electronic components, mobile phone casings, notebook and flat casing, stripping, film cutting, PCB bar code, shell nameplate, etc.

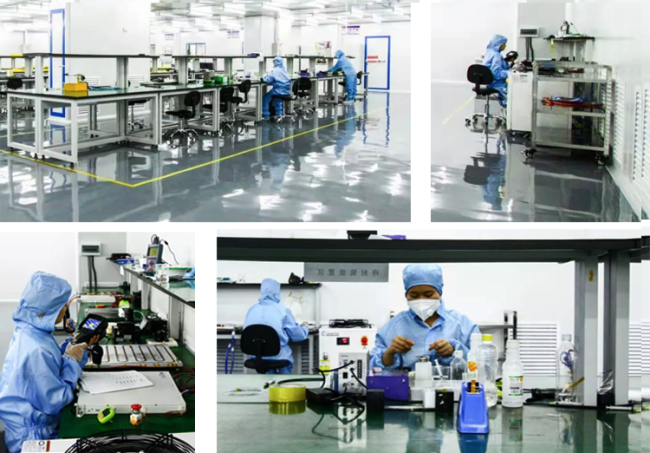

Factory environment
