Constant Torque Motor 105mm OD Low Torque Motor Stator Torque Motor DC Motor Torque
Torque Motor Low Stator And Rotor Mass With Large Inner Diameter Ultra-Thin Design
Torque Motor Low Stator And Rotor Mass With Large Inner Diameter Ultra-thin design
NAMING OF THE TORQUE MOTORS:
TMXSL=Slot-less torque motors with X magnet type;
65=Outter diameter of stator 65,78,105,133,160,190
17=Axial height of the stator 17, 25, 34, 60, 92; N=Winding type: N, S, Y and Z
Performance
| Parameter | Remarks | Symbol | Unit | TMXSL105-17 | TMXSL105-25 | TMXSL105-34 | TMXSL105-60 | TMXSL105-92 | ||||||
| Winding Type | N | Y | Z | N | Y | Z | N | Y | Z | N | Y | |||
| Motor type | 3 phases synchronous slotless 230Vac rms (320Vdc) | 380Vac rms (600Vdc) | ||||||||||||
| Peak torque | Magnet@25°C | Tp | Nm | 1.2 | 1.2 | 1.2 | 3.2 | 3.2 | 3.2 | 5.4 | 5.4 | 5.4 | 12 | 20 |
| Continuous torque | Coil@120°C | Tc | Nm | 0.32 | 0.32 | 0.32 | 0.8 | 0.8 | 0.8 | 1.35 | 1.35 | 1.35 | 3 | 5 |
| Maximum Speed | @Tc@48V | nmax | mrpm | 20000 | 30000 | 50000 | 10000 | 20000 | 30000 | 5000 | 10000 | 20000 | 3000 | 3000 |
| Motor Torque Constant | Kt | Nm/Arms | 0.07 | 0.04 | 0.02 | 0.15 | 0.08 | 0.05 | 0.26 | 0.13 | 0.07 | 0.71 | 0.6 | |
| Motor Constant | Coils@25°C | Km | N2/W | 0.0009 | 0.0009 | 0.0009 | 0.0029 | 0.0028 | 0.0031 | 0.0061 | 0.0054 | 0.0058 | 0.0197 | 0.0199 |
Electrical
| Parameter | Remarks | Symbol | Unit | TMXSL105-17 | TMXSL105-25 | TMXSL105-34 | TMXSL105-60 | TMXSL105-92 | ||||||
| Peak Current | Magnet@25°C | lp | Arms | 17.3 | 31.9 | 55.1 | 21.6 | 40 | 68 | 20.4 | 43.2 | 73.6 | 16.8 | 33.2 |
| Max.Continuous Current | Coil@110°C | lc | Arms | 4.6 | 8.5 | 14.7 | 5.4 | 10 | 17 | 5.1 | 10.8 | 18.4 | 4.2 | 8.3 |
| Back EMF Phase to Phase peak | 25℃+/-10% | Kep | V/krpm | 6 | 3 | 2 | 13 | 7 | 4W | 23 | 11 | 6 | 62 | 52 |
| Back EMF Phase to Phase RMS | C25℃+/-10% | Ke | V/krpm | 4 | 2 | 1 | 9 | 5 | 3 | 16 | 8 | 4 | 43 | 37 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 1.75 | 0.55 | 0.18 | 2.5 | 0.75 | 0.24 | 3.81 | 0.96 | 0.31 | 8.62 | 6.08 |
| Induction Per Phase | I<0.63lp | Lph | Mh | 1.61 | 0.56 | 0.56 | 3 | 0.75 | 0.25 | 4.99 | 1.25 | 0.37 | 16.01 | 12.75 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 0.9 | 1 | 0.9 | 1.2 | 1 | 1 | 1.2 | 1.3 | 1.2 | 1.8 | 1.9 |
| Max. Continuous Power Loss | All coils | Pc | W | 144.4 | 155 | 151.7 | 284.3 | 292.5 | 270.5 | 386.5 | 437.6 | 412 | 593 | 1633.5 |
| Poles | Nmag | nr | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
Product dimension drawing
Stator:
Rotor:

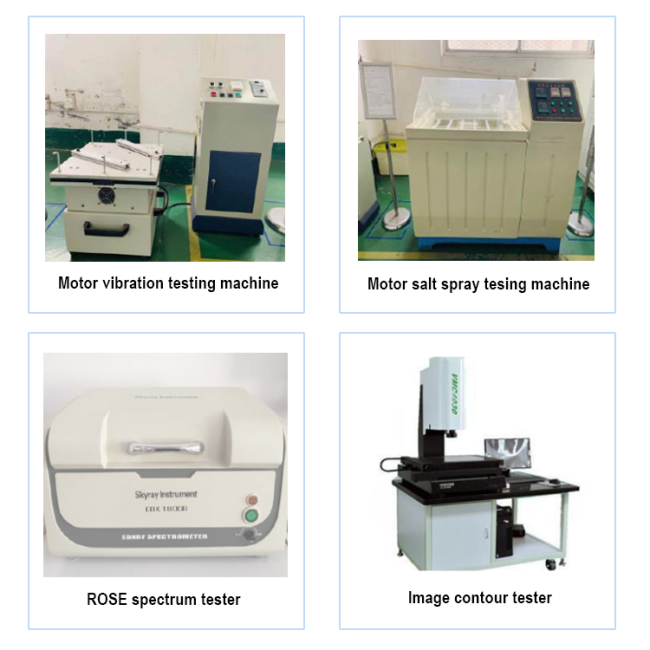

Testing instruments:
Application area:
FAQ:
Q1. Can I have a sample order?
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 5-7 workdays.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: By express or air or sea .
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
