RoHs Low Cogging Zero Cogging With High Standards 12V DC Motor High Torque Low Rpm
Direct Drive Torque Motor Low Cogging And Zero Cogging Top Quality With High Standards
Direct Drive Torque Motor Performance
| Parameter | Remarks | Symbol | Unit | TMXSL160-17 | TMXSL160-25 | TMXSL160-34 | TMXSL160-60 | TMXSL160-92 | |||||
| Winding Type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Motor type | 3 phases synchronous slotless 230Vac rms (320Vdc) | 380Vac rms (600Vdc) | |||||||||||
| Peak torque | Magnet@25°C | Tp | Nm | 4.1 | 4.1 | 4.1 | 9.7 | 9.7 | 9.7 | 15.9 | 15 | 36.4 | 60.8 |
| Continuous torque | Coil@120°C | Tc | Nm | 1.03 | 1.03 | 1.03 | 2.43 | 2.43 | 2.43 | 3.98 | 3.75 | 9.1 | 15.2 |
| Maximum Speed | @Tc@48V | nmax | mrpm | 8819 | 15679 | 26458 | 4410 | 7898 | 13656 | 2453 | 9407 | 1725 | 1036 |
| Motor Torque Constant | Kt | Nm/Arms | 0.24 | 0.14 | 0.08 | 0.48 | 0.27 | 0.16 | 0.86 | 0.23 | 2.3 | 3.83 | |
| Motor Constant | Coils@25°C | Km | N2/W | 0.006 | 0.006 | 0.007 | 0.018 | 0.018 | 0.018 | 0.036 | 0.031 | 0.114 | 0.625 |
Direct Drive Torque Motor Electrical
| Parameter | Remarks | Symbol | Unit | TMXSL160-17 | TMXSL160-25 | TMXSL160-34 | TMXSL160-60 | TMXSL160-92 | |||||
| Peak Current | Magnet@25°C | lp | Arms | 17.2 | 30.5 | 51.5 | 20.3 | 36.3 | 62.7 | 18.4 | 66.7 | 15.8 | 15.9 |
| Max.Continuous Current | Coil@110°C | lc | Arms | 4.3 | 7.6 | 12.9 | 5.1 | 9.1 | 15.7 | 4.6 | 16.7 | 4 | 4 |
| Back EMF Phase to Phase peak | 25℃+/-10% | Kep | V/krpm | 21 | 12 | 7 | 41 | 23 | 13 | 74 | 19 | 198 | 330 |
| Back EMF Phase to Phase RMS | C25℃+/-10% | Ke | V/krpm | 15 | 8 | 5 | 29 | 16 | 9 | 53 | 14 | 140 | 233 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 3.15 | 0.95 | 0.31 | 4.37 | 1.3 | 0.44 | 6.87 | 0.55 | 15.49 | 5.86 |
| Induction Per Phase | I<0.63lp | Lph | Mh | 3.78 | 1.24 | 0.4 | 6.12 | 1.95 | 0.66 | 10.99 | 0.88 | 26.33 | 16.47 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 1.2 | 1.3 | 1.3 | 1.4 | 1.5 | 1.5 | 1.6 | 1.6 | 1.7 | 2.9 |
| Max. Continuous Power Loss | All coils | Pc | W | 226.3 | 215.7 | 200.4 | 436.8 | 416.2 | 422.7 | 568.4 | 595.8 | 945.4 | 348.9 |
| Poles | Nmag | nr | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | |

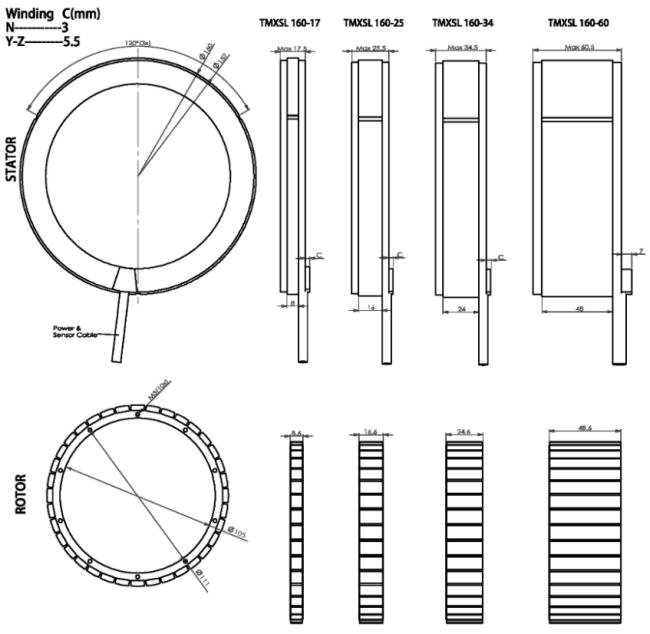

Direct drive torque motor dimension drawing:
Direct Drive Torque Motor application area
FAQ:
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-L/C, T/T, Western Union
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL and ect).Please confirm with us before placing orders.
