EL109 CE Heat 730N Linear Synchronous Motor With Low Power Consumption
Performance
| Parameter | Remarks | Symbol | Unit | EL109X-3 | EL109X-6 | EL109X-9 | EL109X-12 | EL109X-18 | |||||
| Winding Type | N | S | N | S | N | S | N | S | N | S | |||
| Motor Type | 3 phases synchronous Ironless 230Vacrms(320Vdc) | ||||||||||||
| Peak Force | Magnet@25°C | Fp | N | 730 | 730 | 1460 | 1460 | 2190 | 2190 | 2920 | 2920 | 4380 | 4380 |
| Continuous Force | Coil@120°C | Fc | N | 145 | 145 | 290 | 290 | 435 | 435 | 580 | 580 | 870 | 870 |
| Maximum Speed | @320V | Vmax | m/s | 2.6 | 6.8 | 2.6 | 6.8 | 2.6 | 6.8 | 2.6 | 6.8 | 2.6 | 6.8 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 127 | 49 | 127 | 49 | 127 | 49 | 127 | 49 | 127 | 49 |
| Motor Constant | Coils@25°C | S | N2/W | 340 | 340 | 680 | 680 | 1020 | 1020 | 1359 | 1359 | 2039 | 2039 |
Electrical
| Parameter | Remarks | Symbol | Unit | EL109X-3 | EL109X-6 | EL109X-9 | EL109X-12 | EL109X-18 | |||||
| Peak Current | Magnet@25°C | lp | Arms | 5.7 | 14.9 | 11.5 | 29.8 | 17.2 | 44.7 | 23 | 59.6 | 34.5 | 89.4 |
| Continuous Current | Coil@120°C | lc | Arms | 1.1 | 3 | 2.3 | 5.9 | 3.4 | 8.9 | 4.6 | 11.8 | 6.9 | 17.8 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 104 | 40 | 104 | 40 | 104 | 40 | 104 | 40 | 104 | 40 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 15.82 | 2.6 | 7.9 | 1.29 | 5.3 | 0.86 | 3.95 | 0.65 | 2.6 | 0.43 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 28.5 | 4.7 | 14.2 | 2.3 | 9.5 | 1.5 | 7.1 | 1.2 | 4.7 | 0.8 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Power Loss | All coils | Pc | W | 119 | 119 | 238 | 238 | 357 | 357 | 476 | 476 | 713 | 713 |
Product dimension drawing:
Magnet Yoke
Coil Unit

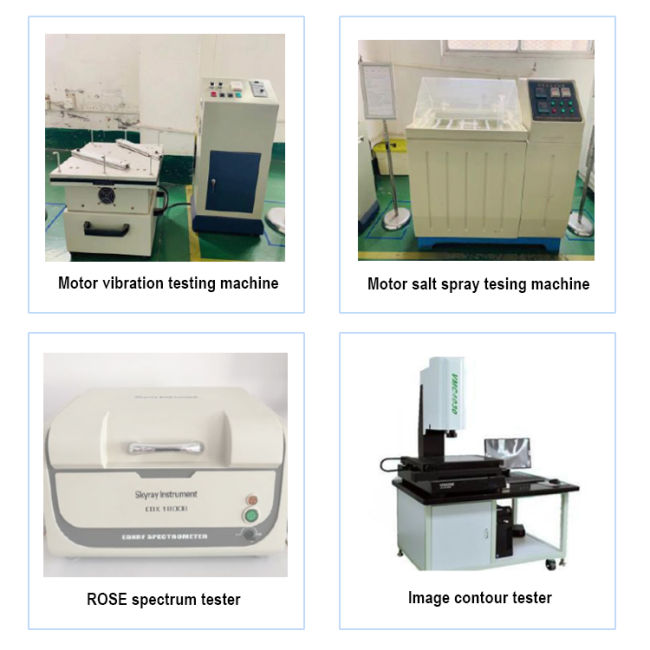

Test equipment
FAQ:
Q: I need a non-standard Linear motor for my application, can you help?
A: Certainly, most of our customers request custom configurations in one form or another. If you plan on replacing a motor in an existing application, just send us a drawing or sample and we can help you find a suitable replacement.
Q: How long should I expect the lead-time/delivery to be?
A: If you are ordering samples of standard models, we can usually have them shipped and delivered within 5-7 days . When requesting custom motors, please allow us a 4-5 week lead-time.
Q: How are your products delivered?
A: We are very flexible with shipping and have dealings with most major courier services around the world. When placing an order, simply provide us a shipping address and contact information, we will handle the rest. If there is a forwarder or courier you prefer to use, just let us know and we will accommodate.
Q: Do you provide OEM services? Can I request my own logo?
A: Yes, we can provide OEM services for volume production. Feel free to talk to us about your branding needs.
Q: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%
Q:How is your quality control?
A: Our professional QC will check the quality during production and carry out quality test before shipment.
