Low Attraction Force Ironcore Linear Motor Linear Submicron Positioning Accuracy
Ironcore Linear Motor Very Low Attraction Force And Cogging Very Good Heat Dissipation Performance
Ironcore Linear Motor Very Low Attraction Force And Cogging Very Good Heat Dissipation Performance
| Parameter | Remarks | Symbol | Unit | IC124WC-12 | IC124WC-15 | IC124WC-18 | IC124WC-30 | IC124WC-45 | |||||
| Winding Type | N | S | N | S | N | S | N | S | N | S | |||
| Motor type | 3 phases synchronous Ironcore 380Vacrms(560Vdc) | ||||||||||||
| Ultimate Force | Magnet@25°C | Fu | N | 1900 | 1900 | 2375 | 2375 | 2850 | 2850 | 4750 | 4750 | 7125 | 7125 |
| Peak Force | Magnet@25°C | Fp | N | 1680 | 1680 | 2100 | 2100 | 2520 | 2520 | 4200 | 4200 | 6300 | 6300 |
| Continuous Force | Coil@110°C | Fc | N | 1040 | 1040 | 1300 | 1300 | 1560 | 1560 | 2600 | 2600 | 3900 | 3900 |
| Maximum Speed | @560V | Vmax | m/s | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 186.0 | 93.0 | 224.5 | 93.0 | 186.0 | 90.0 | 224.5 | 93.0 | 224.5 | 93.0 |
| Motor Constant | Coils@25°C | S | N2/W | 1760 | 1760 | 2200 | 2200 | 2640 | 2640 | 4400 | 4400 | 6600 | 6600 |
| Parameter | Remarks | Symbol | Unit | IC124WC-12 | IC124WC-15 | IC124WC-18 | IC124WC-30 | IC124WC-45 | |||||
| Ultimate Current | Magnet@25°C | lu | Arms | 14 | 28 | 14 | 35 | 21 | 43 | 29 | 69 | 43 | 104 |
| Peak Current | Magnet@25°C | lp | Arms | 11 | 21 | 11 | 26 | 16 | 33 | 22 | 53 | 33 | 79 |
| Continuous Current Water cooled | Coil@110°C | lc | Arms | 6 | 11 | 6 | 14 | 8 | 17 | 12 | 28 | 17 | 42 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 152 | 76 | 183 | 76 | 152 | 73 | 183 | 76 | 183 | 76 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 6.35 | 1.59 | 7.55 | 1.27 | 4.24 | 1.02 | 3.78 | 0.64 | 2.53 | 0.43 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 51 | 13 | 60 | 10 | 34 | 8 | 30 | 5 | 20 | 3 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Power Loss | All coils | Pc | W | 487 | 487 | 609 | 609 | 731 | 731 | 1218 | 1218 | 1827 | 1827 |

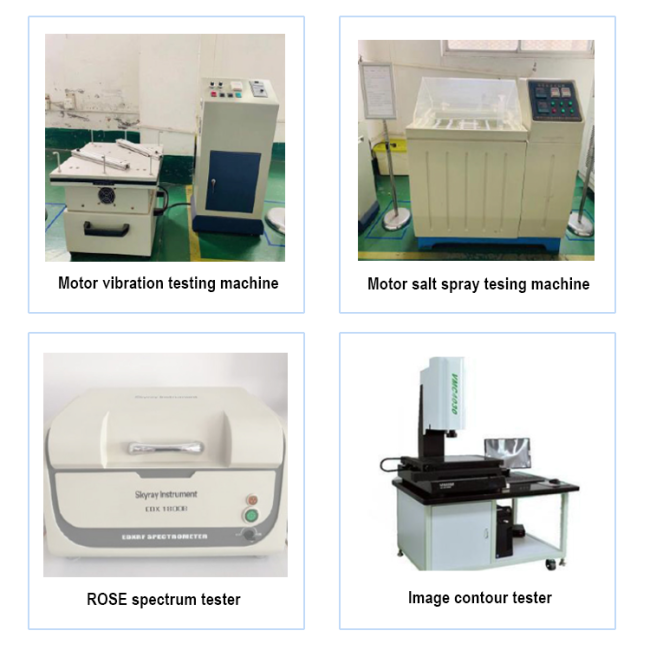

Test equipment

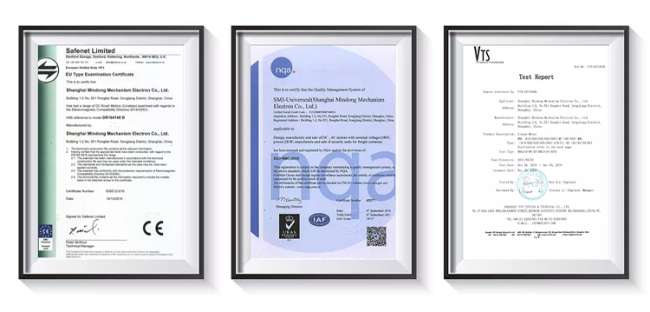

Product certificate
