DDSM126 Series Sine Wave Brushless DC Torque Motor Low Speed Large Torque And Locked Rotor
DDSM126 Series Sine Wave Brushless DC Torque Motor Low Speed Large Torque And Locked Rotor
DDSM sine wave series brushless direct drive motor (also known as the DD motor, sine wave dc brushless torque motor) has a variety of fold thick and torque range, easy installation, good performance, long service life, can provide proprietary custom solutions to our customers. Is different from a brush dc torque motor, DDSM sine wave series brushless direct drive motor (dc brushless torque motor) no brush wear, no commutation spark interference, reliability and life expectancy has greatly improve, this series of products are suitable for all kinds of high precision platform, optical turret, tank turret, unmanned aerial vehicle (uav) pod, medical equipment, underwater robots, and high precision nc machine tools, industrial robot system, intelligent agriculture, factory automation, etc.

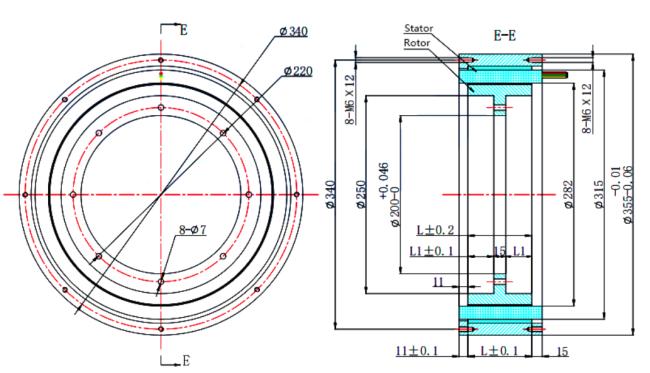

Direct Drive Torque Motor Specification
| Type | Peak Standstill | Max.no-load | Cont.Standstill | rotary inertia (Kg.m2*10-5) |
iron core (mm) |
||||
| Torque | Current | Voltage | Torque | Current | Voltage | ||||
| N.M | A | V | r/min | N.M | A | V | |||
| ≥ | ±12.5% | ±12.5% | ±10% | ≥ | ±12.5% | ±12.5% | |||
| DDSM126-015A | 118 | 46.8 | 48 | 170 | 30 | 11.9 | 12.2 | 5000 | 15 |
| DDSM126-03A | 225 | 25 | 310 | 295 | 68 | 7.6 | 34 | 7095 | 30 |
| DDSM126-03B | 168 | 30 | 48 | 75 | 68 | 12.3 | 19 | 7095 | 30 |
| DDSM126-03C | 128 | 8.1 | 110 | 60 | 68 | 4.3 | 58.2 | 7095 | 30 |
| DDSM126-03D | 330 | 63.5 | 90 | 150 | 68 | 13 | 18.2 | 7095 | 30 |
| DDSM126-03E | 168 | 16 | 100 | 83 | 68 | 6.5 | 40.6 | 7095 | 30 |
| DDSM126-06A | 384 | 13 | 310 | 87 | 125 | 4.05 | 79.4 | 11563 | 60 |
| DDSM126-06B | 280 | 18 | 90 | 50 | 125 | 8 | 39 | 11563 | 60 |
| DDSM126-06C | 250 | 29 | 48 | 48 | 125 | 14.5 | 21.3 | 11563 | 60 |
| DDSM126-06D | 270 | 13.6 | 110 | 48 | 125 | 6.3 | 50 | 11563 | 60 |
| DDSM126-09A | 400 | 18 | 110 | 43 | 180 | 8.1 | 48 | 16030 | 90 |
| DDSM126-09B | 380 | 29.3 | 60 | 40 | 180 | 14 | 27.3 | 16030 | 90 |
| DDSM126-09C | 280 | 3.7 | 270 | 31 | 180 | 2.4 | 173 | 16030 | 90 |
| DDSM126-12A | 580 | 26.5 | 110 | 43 | 250 | 11.5 | 47 | 20500 | 120 |
| DDSM126-12B | 480 | 24.2 | 80 | 35 | 250 | 12.6 | 41.1 | 20500 | 120 |
| DDSM 126-12C | 520 | 7.8 | 310 | 40 | 250 | 3.8 | 147 | 20500 | 120 |
| DDSM126-15A | 630 | 30 | 90 | 35 | 320 | 14.8 | 44.5 | 25000 | 150 |
| DDSM126-15B | 850 | 16.2 | 310 | 50 | 320 | 6 | 113.5 | 25000 | 150 |
| DDSM126-15C | 470 | 30 | 48 | 26 | 320 | 20 | 33.5 | 25000 | 150 |
