Three Axis XYR Alignment Stages CE Magnetic Absolute Accuracy 6μM
Three Axis Magnetic Axis Motor And Three Axis Precision Screw Module Absolute Accuracy 6μm
Three Axis Magnetic Axis Motor And Three Axis Precision Screw Module Absolute accuracy 6μm
Support the motion of any point around a point in space;
Support any point in the space to execute any path trajectory motion:
Supports uniform track speed, variable speed, track linkage with IO, etc.
Global absolute accuracy after calibration: 6μm
| Specification parameters | SA1603 | ||
| Driving and mechanical characteristic(mm) | X | Y | Z |
| Effective travel(mm) | 60 | 30 | 30 |
| straightness(μm) | 3 | 3 | 3 |
| Maximum speed(mm/s) | 500 | 200 | 100 |
| Maximum acceleration(m/s2) | 15 | 15 | 15 |
| Rated thrust (N) | 20 | 15 | 15 |
| Peak thrust (N) | 81 | 60 | 60 |
| Rated current(Arms) | 0.6 | 0.6 | 0.6 |
| Peak current(Arms) | 2.5 | 2.5 | 2.5 |
| Thrust destiny(N/Arms) | 33 | 24 | 24 |
| inverse power constant(Vrms/m/s) | 11 | 8.1 | 8.1 |
| Resistance(Ω) | 43 | 33 | 33 |
| Inductance(mH) | 16 | 12 | 12 |
| Pole spacing(N-N )(mm) | 60 | 60 | 60 |
| Sensor signal | Differential ABZ phase | Differential ABZ phase | Differential ABZ phase |
| Sensor resolution(μm) | 0.05 | 0.05 | 0.05 |
| Bidirectional repetition accuracy(μm) | ±0.1 | ±0.1 | ±0.1 |
| Guiding type | Take the peristalsis cross roller guide rail system | ||
| Material | Aluminum, anodized black | ||
| Operating ambient temperature | 10-40℃ | ||
| Ambient humidity | 20-80% (no condensation) | ||
| Cable wire length | 3m | ||
| Driving and mechanical characteristics | θx | θy | θz |
| Effective stroke(°) | ±5 | ±5 | ±4,5 |
| Maximum speed (°/s) | 13.64 | 11.3 | 8.5 |
| Resolution(°) | 0.000682 | 0.000378 | 0.000282 |
| Repeat positioning accuracy(°) | 0.002 | 0.001 | 0.001 |
| Steering mechanism | Cross roller bearing | Cross roller bearing | Cross roller bearing |
| Transmission mechanism | Ball screw | Ball screw | Ball screw |
| Motor type | Five-phase step enters a motor | Five-phase step enters a motor | Five-phase step enters a motor |
| Material | Aluminum, anodized black | ||
| Operating ambient temperature | 10~40°C | ||
| Ambient humidity | 20-80% (no condensation) | ||
Outline dimension drawing
Application area

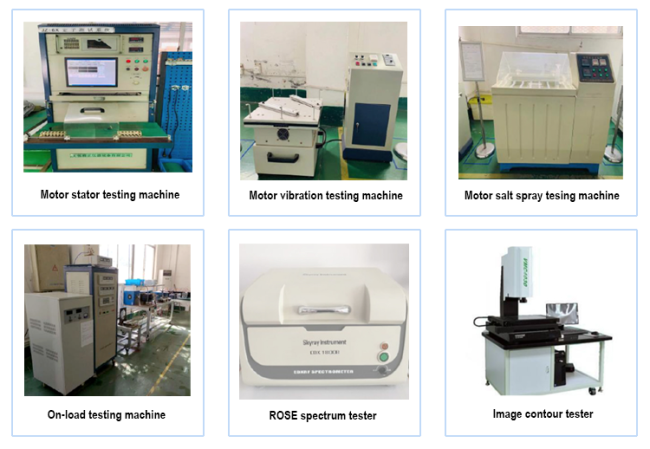

Test equipment
Product certificate
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit →mass production →cargo ready → balance/delivery → further cooperation
Q:Which shipping way is available?
A: DHL, UPS, FedEx, EMS,Sea are available. The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver Producing and shipping?
A:Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for anyinconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be
accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
