S08 Series Cogging Effect XYR Stage Adopt Rod Falls Small Single Shaft Linear Motion
S08 Series Single Shaft Linear Motion Adopt Rod Falls The Cogging Effect Linear Motor Speed Fluctuation Is Small
S08 Series Single Shaft Linear Motion Adopt Rod Falls The Cogging Effect Linear Motor Speed Fluctuation Is Small
Platform Compact Structure Small Power Loss
Range from high to low speed etc it can achieve the high precision of position control
Compact structure, High precision
| Specification parameters | S08 | ||
| Driving and mechanical characteristic(mm) | S0810 | S0830 | S0850 |
| Drive shaft | X | X | X |
| Effective travel(mm) | 10 | 30 | 50 |
| straightness(μm) | 3 | 3 | 3 |
| Maximum speed(mm/s) | 50 | 200 | 300 |
| Maximum acceleration(m/s2) | 10 | 10 | 10 |
| Z axis load capacity(N) | 20 | 20 | 20 |
| Quality of the mobile (kg) |
0.3 | 0.35 | 0.4 |
| total quality(kg) | 0.9 | 1.05 | 1.2 |
| Rated thrust (N) | 4.9 | ||
| Peak thrust (N) | 20 | ||
| Rated current(Arms) | 1.7 | ||
| Peak current(Arms) | 6.7 | ||
| Thrust destiny(N/Arms) | 2.9 | ||
| inverse power constant(Vrms/m/s) | 1 | ||
| Resistance(Ω) | 2.3 | ||
| Inductance(mH) | 0.3 | ||
| Pole spacing(N-N )(mm) | 30 | ||
| power supply specifications(VDC) | 24 | ||
| Guiding type | Take the peristalsis cross roller guide rail system | ||
| encoder options | S08xx-1 | S08XX-2 | S08xx-B |
| encoder feedback type | Incremental linear encoder | Incremental linear encoder | Absolute value encoder |
| Sensor signal | Sine/cosine | Differential AB phase | BiSS-C |
| Sensor resolution(μm) | 1.2 | 50 | 1 |
| Minimum displacement(nm) | 10 | 100 | 10 |
| Bidirectional repetition accuracy(μm) | ±0.1 | ±0.2 | ±0.1 |
| After positioning accuracy (compensation)(μm) | 0.2 | 0.2 | 0.2 |
| Other | S08 | ||
| Material | Aluminum, anodized black | ||
| Operating ambient temperature | 10-40℃ | ||
| Ambient humidity | 20-80% (no condensation) | ||
| Cable wire length | 3m | ||

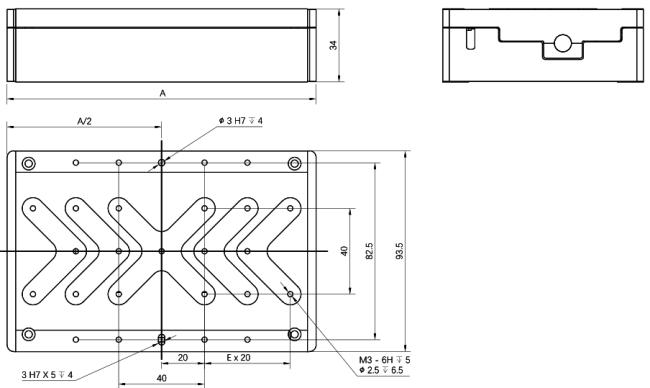

Outline dimension drawing
