S10 Series XYR Stage Mechanical Device Smoothly Single Shaft Linear Motion
S10 Series Single Shaft Linear Motion Simple Mechanical Device Smoothly Without Noise Zero Maintenance
S10 Series Single Shaft Linear Motion Simple Mechanical Device Smoothly Without Noise Zero Maintenance
1. Compact structure, High precision, precision linear ball with fine grinding steel bar as rail.
2. Micrometer adjust, Quantitative readings.
3. High Load Capacity,right and left hand pair design.
4. There are mounting holes on the top and bottom plate.
| Specification parameters | S10 | ||
| Driving and mechanical characteristic(mm) | S1010 | S1030 | S1050 |
| Drive shaft | X | X | X |
| Effective travel(mm) | 10 | 30 | 50 |
| straightness(μm) | 3 | 3 | 3 |
| Maximum speed(mm/s) | 50 | 200 | 300 |
| Maximum acceleration(m/s2) | 15 | 15 | 5 |
| Z axis load capacity(N) | 40 | 40 | 10 |
| Quality of the mobile (kg) |
0.5 | 0.50 | 0.4 |
| total quality(kg) | 1.2 | 1.4 | 0.9 |
| Rated thrust (N) | 8.8 | ||
| Peak thrust (N) | 35 | ||
| Rated current(Arms) | 2.2 | ||
| Peak current(Arms) | 8.9 | ||
| Thrust destiny(N/Arms) | 3.9 | ||
| inverse power constant(Vrms/m/s) | 1.3 | ||
| Resistance(Ω) | 1.5 | ||
| Inductance(mH) | 0.3 | ||
| Pole spacing(N-N )(mm) | 36 | ||
| power supply specifications(VDC) | 24 | ||
| Guiding type | Take the peristalsis cross roller guide rail system | ||
| encoder options | S10XX-1 | S10XX-2 | S10xx-B |
| encoder feedback type | Incremental linear encoder | Incremental linear encoder | Absolute value encoder |
| Sensor signal | Sine/cosine | Differential AB phase | BiSS-C |
| Sensor resolution(μm) | 1.2 | 50 | 1 |
| Minimum displacement(nm) | 10 | 100 | 10 |
| Bidirectional repetition accuracy(μm) | ±0.1 | ±0.2 | ±0.1 |
| After positioning accuracy (compensation)(μm) | 0.2 | 0.2 | 0.2 |
| Other | S10 | ||
| Material | Aluminum, anodized black | ||
| Operating ambient temperature | 10-40℃ | ||
| Ambient humidity | 20-80% (no condensation) | ||
| Cable wire length | 3m | ||

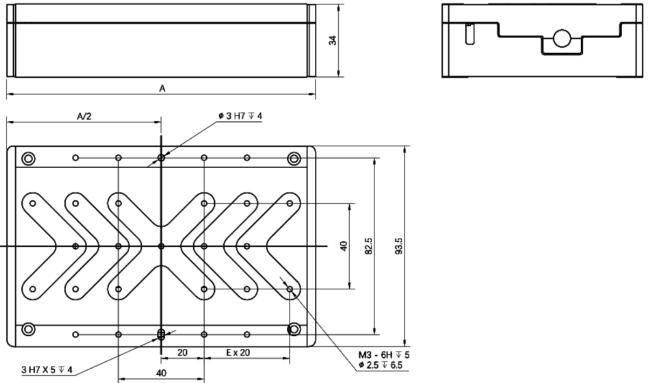

Outline dimension drawing

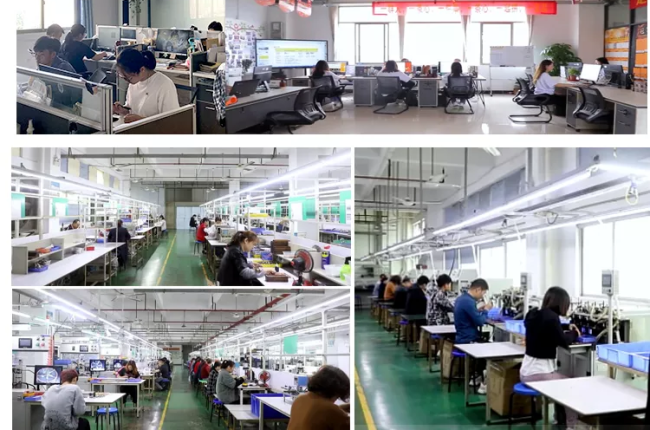

Factory environment
Product testing
Product certificate
FAQ
