Professional Manufacturing Grating Ruler High Reflection Grating Rotary Encoder

Professional Manufacturing Of Grating Rotary Encoder High Precision And High Reflection Optical

Professional Manufacturing Of Grating Rotary Encoder High Precision And High Reflection Optical

Product features

Light the light projected on the surface of the code plate, after passing through its light and dark slit, the optical signal is converted into binary signal by the photosensitive element, and then into regular electrical signal.

Product performance

High temperature test 85℃, 500 hours, low temperature test -40℃ 500 hours, cold and heat shock 85℃ -- 40℃ for one hour each cold and heat cycle, no optical properties, no decoating phenomenon occurred.

Technical specifications

1. Material: glass/resin/metal

2. Standard: 0-10/20-40

3. Optical characteristics: it can realize the membrane system design of any band specified by the customer

4. Concentricity: minimum 0.03mm below

5. Maximum processing size: φ152mm

6 line accuracy: 1.5±0.3um

Product Certification

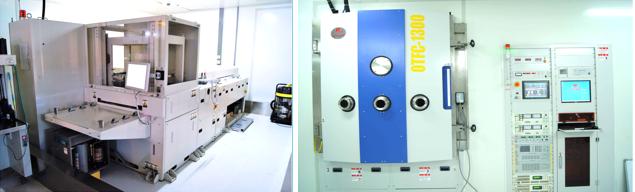

Product Equipment

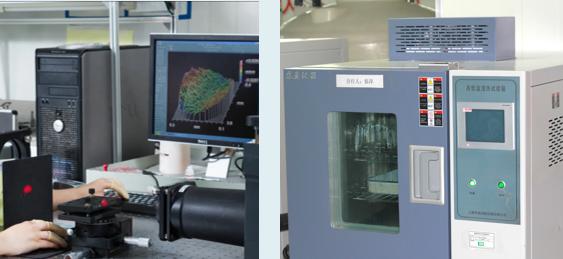

Inspecting Equipment

FAQ:

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q4: What's your payment terms ?

A4: By T/T, Western Union, L/C.

Q5: How long is your production lead time?

A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
