Flexible Displacement Control Voice Coil Motor Thrust Peak 6000N Rating 700N
Voice Coil Motor Thrust Peak 6-1000N Rating 2-700N Maximum Acceleration 20 G
Voice Coil Motor Thrust Peak 6-1000N Rating 2-700N Maximum Acceleration 20 G
● High reliability, high cost performance
● Flexible displacement control
● High speed, high acceleration
● Clean, low noise
● Minimal maintenance and adjustments
| parameter | Unit | EVM05-07 |
| Peak thrust | N | 13 |
| Continue push | N | 4.7 |
| Peak current | A | 2.2 |
| Rated current | A | 0.8 |
| Thrust constant | N/A | 5.8 |
| back emf constant | Vpk/m/s | 5.8 |
| Maximum voltage | V | 25.1 |
| Total trip | mm | 7.2 |
| Dc resistance | Ω | 11.2 |
| Inductance | mH | 2.4 |
| Max power dissipation | W | 56.3 |
| Side clearance | mm | 0.5 |
| Thermal resistance | a/w | 17.2 |
| Highest temperature coil allows | ℃ | 150 |
| Weight of coil component | g | 18 |
| Magnetic steel component weight | g | 60 |
| Motor weight | g | 78 |

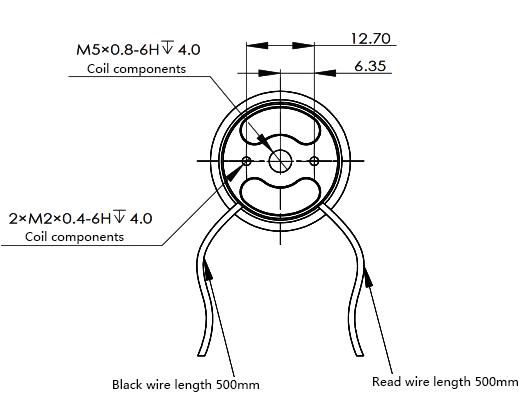

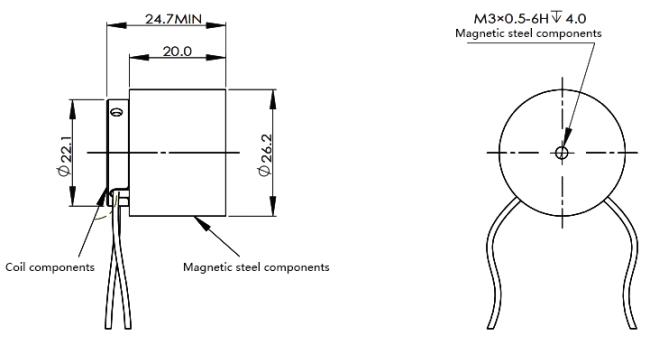

Outline dimension drawing
FAQ:
Q1. Can I have a sample order?
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 5-7 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: By express or air or sea .
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
