Fast Response Voice Coil Motor 22N Oscillating Back Mini Linear Motor
Mini Voice Coil Motor Fast Response Speed Millisecond High Acceleration Oscillating Back And Forth At High Speed
Mini Voice Coil Motor Fast response speed millisecond High acceleration Oscillating back and forth at high speed
● Small size, especially suitable for use in some small spaces.
● The response speed is fast, its own weight is small, it can achieve very high acceleration and can do high-speed oscillation reciprocating motion.
● The control is simple and reliable, no reversing device, long life, and can work continuously for a long time.
● It can carry out precise position, speed, acceleration and thrust control without backlash troubles.
Voice Coil Motor applications
● Optical electronics
● Automobile production inspection
● Automatic patch welding
● Biomedical testing
● Semiconductors and robots
| parameter | Unit | EVM07-10 |
| Peak thrust | N | 22 |
| Continue push | N | 6.7 |
| Peak current | A | 3.8 |
| Rated current | A | 1.16 |
| Thrust constant | N/A | 5.8 |
| back emf constant | Vpk/m/s | 5.8 |
| Maximum voltage | V | 24.7 |
| Total trip | mm | 9.8 |
| Dc resistance | Ω | 6.5 |
| Inductance | mH | 1 |
| Max power dissipation | W | 93.5 |
| Side clearance | mm | 0.5 |
| Thermal resistance | a/w | 14.8 |
| Highest temperature coil allows | ℃ | 150 |
| Weight of coil component | g | 20 |
| Magnetic steel component weight | g | 163 |
| Voice coil motor weight | g | 183 |

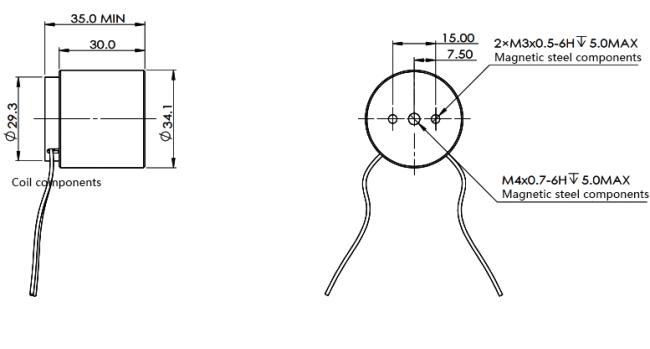

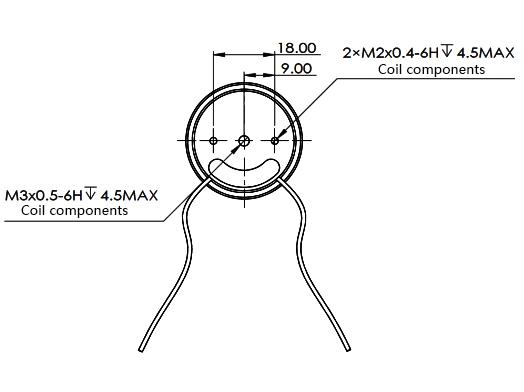

Voice Coil Motor outline dimension drawing
FAQ:
Q:how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q:what services can we provide?
A:Accepted Delivery Terms: By express or air or sea；
Accepted Payment Currency:USD.
Q. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Product certificate

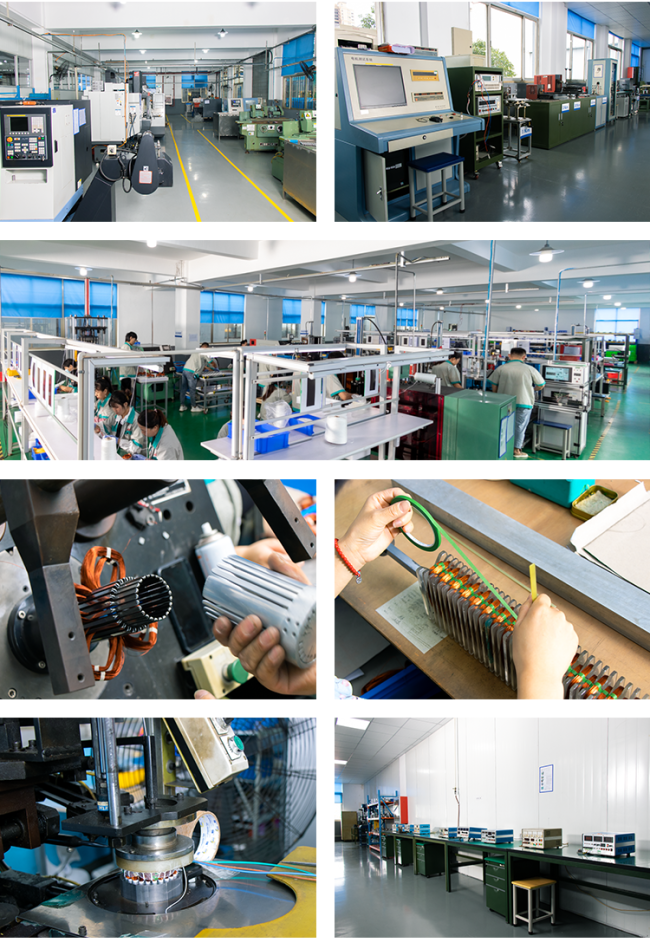

Factory environment
