High Thrust Miniature Linear Motor Cylindrical Spring 1000N Cylindrical Voice Coil
New Voice Coil Motor Cylindrical Spring Type High Thrust 1000N Miniature Linear Motor High Efficiency Drive
New Voice Coil Motor Cylindrical Spring Type High Thrust 1000N Miniature Linear Motor High Efficiency Drive
● Small size, especially suitable for use in some small spaces.
● The response speed is fast, its own weight is small, it can achieve very high acceleration and can do high-speed oscillation reciprocating motion.
● The control is simple and reliable, no reversing device, long life, and can work continuously for a long time.
●I t can carry out precise position, speed, acceleration and thrust control without backlash troubles.
The main application of a voice coil motor:
● Semiconductor industry:Wiring,cutting, drilling, transportation systems, welding,robotics.
● Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
● Micro Machine industry:Feed systems, micro drilling, precision stamping.
● Vibration System:Shaking table, vibration platform.
| parameter | Unit | EVM08-10 |
| Peak thrust | N | 33 |
| Continue push | N | 8.3 |
| Peak current | A | 5.6 |
| Rated current | A | 1.4 |
| Thrust constant | N/A | 5.9 |
| back emf constant | Vpk/m/s | 5.9 |
| Maximum voltage | V | 23.5 |
| Total trip | mm | 10 |
| Dc resistance | Ω | 4.2 |
| Inductance | mH | 1.2 |
| Max power dissipation | W | 132 |
| Side clearance | mm | 0.5 |
| Thermal resistance | a/w | 15.2 |
| Highest temperature coil allows | ℃ | 150 |
| Weight of coil component | g | 24 |
| Magnetic steel component weight | g | 138 |
| Motor weight | g | 162 |

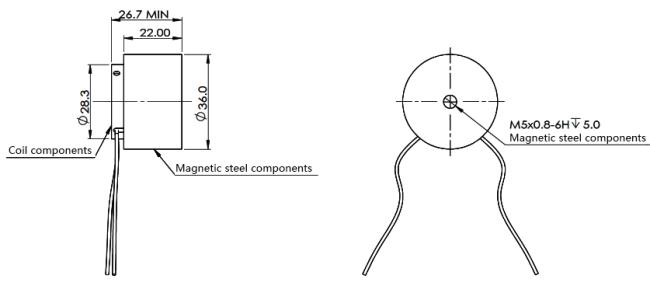

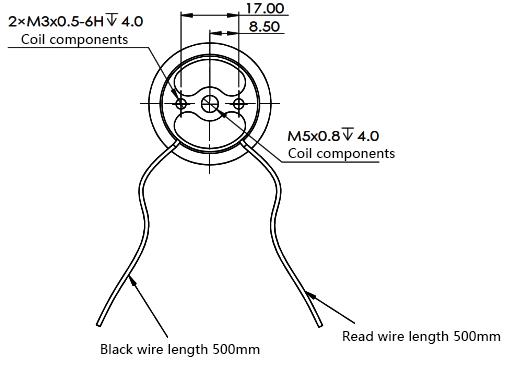

Outline dimension drawing

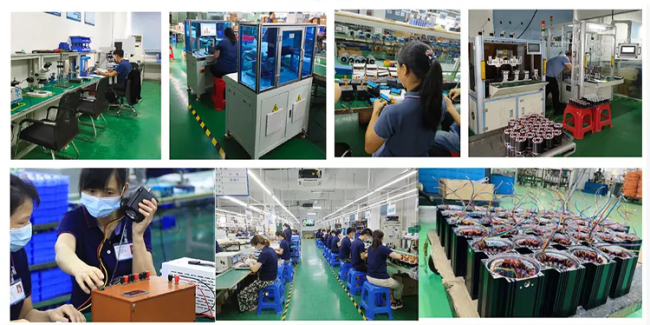

Factory environment

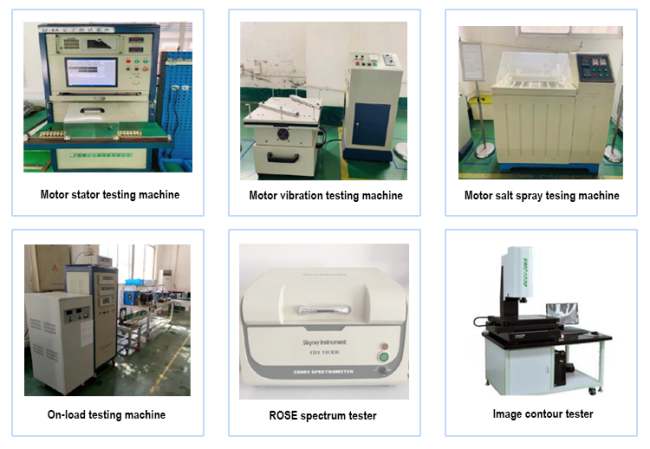

Test equipment
Product certificate
FAQ
Q:Can I buy one as sample?
A: Of course.
Q:how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q:what services can we provide?
A:Accepted Delivery Terms: By express or air or sea；
Accepted Payment Currency:USD.
Q: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%
Q:How is your quality control?
A: Our professional QC will check the quality during production and carry out quality test before shipment.
