Acceleration 20G Voice Coil Motor Reliable Control 5mm Voice Coil Actuators
Voice Coil Motor Acceleration 20G Simple And Reliable Control No Reversing Gear Is Required
Voice Coil Motor Acceleration 20G Simple And Reliable Control No Reversing Gear Is Required
The EVM series of Cylindrical Actuators constitute nearly 80% of the market ,they can productce a high force with a high acceleration rates.Peak Forces range for 6N to 1000N.Typically ,their stroke length is less than 50mm The EVM Series Actuators Applications include valve Actuators,Z Axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems. Markets include Medical semiconductor,Aerospace and Automotive.
The main application of a voice coil motor:
● Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system
● Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.
● Commercial use field:Computer cooling pump miniature camera auto focus system.
● Automation industry:Laser equipment,dispenser, test equipment, textile machinery.
| parameter | Unit | EVM09-05 |
| Peak thrust | N | 32 |
| Continue push | N | 8.9 |
| Peak current | A | 4.5 |
| Rated current | A | 1.25 |
| Thrust constant | N/A | 7.1 |
| back emf constant | Vpk/m/s | 7.1 |
| Maximum voltage | V | 29.3 |
| Total trip | mm | 5 |
| Dc resistance | Ω | 6.5 |
| Inductance | mH | 3.3 |
| Max power dissipation | W | 132 |
| Side clearance | mm | 0.5 |
| Thermal resistance | a/w | 12.2 |
| Highest temperature coil allows | ℃ | 150 |
| Weight of coil component | g | 51 |
| Magnetic steel component weight | g | 254 |
| Motor weight | g | 305 |

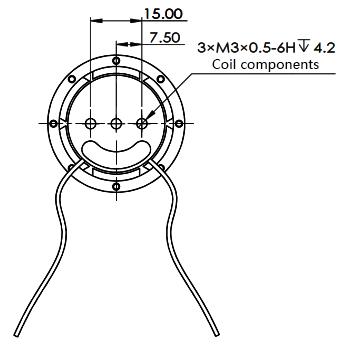

Outline dimension drawing
FAQ:
Q. How do you ship the goods and how long does it take to arrive?
A: By express or air or sea .
Q. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
