CE Linear Voice Coil Motor Motor Max 0.05μM Resolution 0.1μM
Voice Coil Motor Max 0.05μm Resolution And 0.1μm Repeatable Positioning Accuracy Long Continuous Work
Voice Coil Motor Max 0.05μm Resolution And 0.1μm Repeatable Positioning Accuracy Long Continuous Work
● High reliability, high cost performance
● Flexible displacement control
● High speed, high acceleration
● Clean, low noise
● Minimal maintenance and adjustments
The main application of a voice coil motor:
●Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system
●Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.
●Micro Machine industry:Feed systems, micro drilling, precision stamping.
●Vibration System:Shaking table, vibration platform.
| parameter | Unit | EVM09-05 |
| Peak thrust | N | 32 |
| Continue push | N | 8.9 |
| Peak current | A | 4.5 |
| Rated current | A | 1.25 |
| Thrust constant | N/A | 7.1 |
| back emf constant | Vpk/m/s | 7.1 |
| Maximum voltage | V | 29.3 |
| Total trip | mm | 5 |
| Dc resistance | Ω | 6.5 |
| Inductance | mH | 3.3 |
| Max power dissipation | W | 132 |
| Side clearance | mm | 0.5 |
| Thermal resistance | a/w | 12.2 |
| Highest temperature coil allows | ℃ | 150 |
| Weight of coil component | g | 51 |
| Magnetic steel component weight | g | 254 |
| Motor weight | g | 305 |

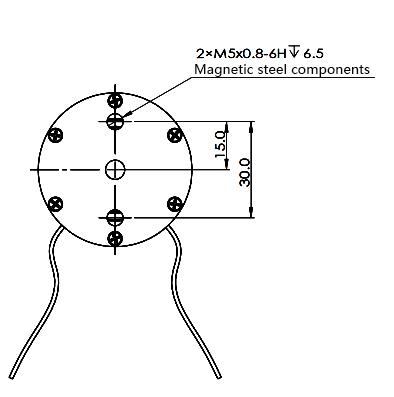

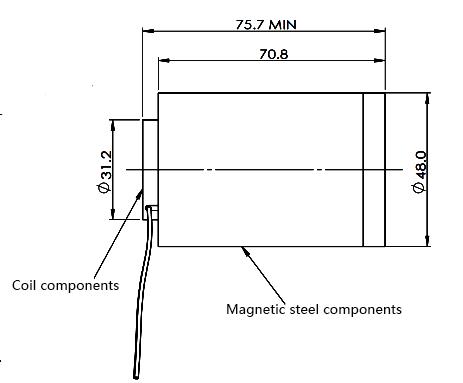

Outline dimension drawing
FAQ:
Q. How do you ship the goods and how long does it take to arrive?
A: By express or air or sea .
Q. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
