Customized Ultra Scan High Precision High Speed Strong Anti-Interference Ability
Customized Ultra Scan High Precision High Speed High Energy Low Temperature Drift Strong Anti-Interference Ability
Ultra Scan products cover a comprehensive range of models: 10/14/20/30/50mm aperture 2D Galvanometers, 14/20/30mm aperture 3D galvanometers. This 2 axis mirror galvanometer coating selection is rich, UV, green, fiber and other coating options, strict mirror quality, to ensure the requirements of mirror flatness and damage threshold. The driver board adopts class D power amplifier, with high output power, small heating and small drift.
Key Features Of Ultra Scan Head
Low noises, high linearity and low drift
Modular design, easy installment and maintenance
Support varieties of F-theta lenses
Available to general protocol (XY2-100) and other protocol
Ultra Scan Technical parameters
| UltraScan I | UltraScan30 |
| Input Beam Aperture (mm) | 30 |
| Beam Displacement (mm) | 35.61 |
| Tracking Error (ms) | 0.7 |
| Repeatability (µrad) | ＜2 |
| Offset Drift (µrad/K) | ＜15 |
| Gain Drift (ppm/K) | ＜80 |
| Long-term drift over 8 hours (mrad) | ＜0.3 |
| 1% Of Full Scale (ms) | 1.2 |
| 10% Of Full Scale (ms) | 4.5 |
| Positioning Speed (m/s) | 3 |
| Typical Scan Angle (°) | ±25 |
| Gain Error (mrad) | <5 |
| Zero Offset (mrad) | <5 |
| Nonlinearity (%) | <0.4 |
| Power Requirements | ±15VDC, ≥3A |
| Communication protocol | 16bit:XY2-100 20bit:ST2-100 |
| Operation Temperature (℃) | 25±10 |
| Weight (kg) | 5.2 |
Galvanometer Scanner Applications
Galvanometer Scanner independent research and development of a series of scanning head systems (7mm, 8.5mm, 10mm, 14mm, 20mm, 30mm, 50mm), with high precision, high speed, high energy, low temperature drift, strong anti-interference ability and other performance, It is widely used in flight marking, precision marking, precision cutting, precision welding, 3D printing, laser drilling, medical cosmetology and ophthalmic imaging and other industries.

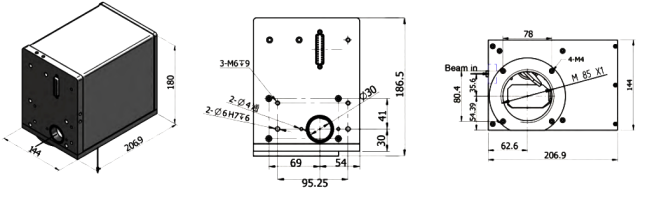

Technical drawing
