Custom Different Scale Optical Encoder Disk Support Outer Diameter And Scale Inner
Optical Encoder Disk Support Custom Different Scale Outer Diameter And Scale Inner Diameter
Optical Encoder Disk Support Custom Different Scale Outer Diameter And Scale Inner Diameter
The optical encoder disk is made of optical glass and is also called aoptical encoder.
There are many concentric code tracks engraved on it, and each code track has light-transmitting and opaque parts arranged according to a certain rule.
It is a patterned glass disc. The pattern on the disc is composed of a series of transparent areas and opaque areas alternately forming a disc or strip.When used with brushes and circuits, it can form a rotary encoder to convert optical signals into digital electrical signals. The optical encoder can be used to accurately measure the angle (or angular displacement).

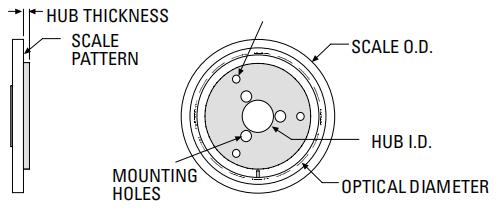

Standard optical encoder disk Specifications
| Model No | Scale Outer Diameter |
Scale Inner Diameter |
Optical Diameter |
Hub Inner Diameter +.0005/-0.0000 |
Hub Thickness | Fundamental CPR |
| R1206 | 0.472 [12.00] | 0.250 [6.35] | 0.413[10.50] | 0.1253 [3.18] | 0.040[1.02] | 1650 |
| R1910 | 0.750 [19.05] | 0.375 [9.52] | 0.627 [15.92] | 0.1253 [3.183] | 0.040[1.02] | 2500 |
| R3213 | 1.250 [31.75] | 0.500 [12.70] | 1.027 [26.08] | 0.2503 [6.358] | 0.050[1.27] | 4096 |
| R5725 | 2.250 [57.15] | 1.000 [25.40] | 2.053 [52.15] | 0.5003 [12.708] | 0.060[1.52] | 8192 |
| R10851 | 4.250[107.95] | 2.000 [50.80] | 4.106[104.30] | 1.0003 [25.408] | 0.080 [2.03] | 16384 |
1. About samples:
please pay the sample fee before we receive the first order.
2. About Customization:
We support customization of incoming drawings. The drawing format is as follows: dxf. dwg. gdsii. tdb.
3. Delivery date:
(1)We will deliver the standard products to you within 5 working days.
(2)Generally, customized products shall be delivered within 7 to 9 working days after payment and confirmation of drawings,excluding the day of confirmation.
(3) If there is mass customization, the delivery time shall be determined according to the specific situation.
4. Quality assurance: we will strictly control errors in the production process; Strict inspection shall be carried out before
delivery to ensure that the products are qualified and the packaging is intact.
